1
Engine displacement
850
2
Year
2019
3
Trim
850 AXYS SKS 155 SC SELECT
4
Parts Catalog
FRONT TRACK SHOCK
5
Parts Diagram
Parts Catalog
ENGINE, MOUNTING
by
REAR TRACK SHOCK
FRONT TRACK SHOCK
-
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
15
16
17
18
19
20
21
22
23
-
COIL OVER SHOCK; WALKER EVANS
7044342
$892,49 Unit Price incl. VAT
1
BODY FT 6.81 BLK 1500153
1800723
9999999
Not Available
2
O-RING STUD
1800215
$14,16 Unit Price incl. VAT
3
NEEDLE VALVE
1800329
$62,99 Unit Price incl. VAT
4
SCREW-BUTTON HEAD 8/32(10)
1800109
$6,29 Unit Price incl. VAT
5
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
6
ADJUSTER SPRING 1500131
1800724
$68,24 Unit Price incl. VAT
7
SPRING RETAINING RING
1800116
$120,74 Unit Price incl. VAT
8
SEAL HEAD; SHORT
1800545
9999999
Not Available
9
SHAFT .50 X 5.935L
1800725
$173,24 Unit Price incl. VAT
10
SHAFT LOOP
1800408
9999999
Not Available
11
BUSHING
1800406
$9,44 Unit Price incl. VAT
12
SLEEVE; 1.15L
1800405
$62,99 Unit Price incl. VAT
13
SPRG-COMP.306X8.75 150# GOLD
7043678703
Not Available
13
SPRG-COMP.306X8.75 150# BLK
7043678458
Not Available
14
JAM NUT
1800465
$99,74 Unit Price incl. VAT
15
THIN WEAR BAND
1800543
$73,49 Unit Price incl. VAT
16
PISTON-RES/PISTON-IFP (600204)
1800348
$152,24 Unit Price incl. VAT
17
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
18
PISTON CONVEX
1800001
9999999
Not Available
19
SHAFT; BUSHING
1800544
$40,94 Unit Price incl. VAT
20
O-RING
1800095
$2,09 Unit Price incl. VAT
21
O-RING BODY
1800027
$3,66 Unit Price incl. VAT
22
SEAL; U-CUP
1800294
$47,24 Unit Price incl. VAT
23
WIPER SEAL
1800295
$26,24 Unit Price incl. VAT

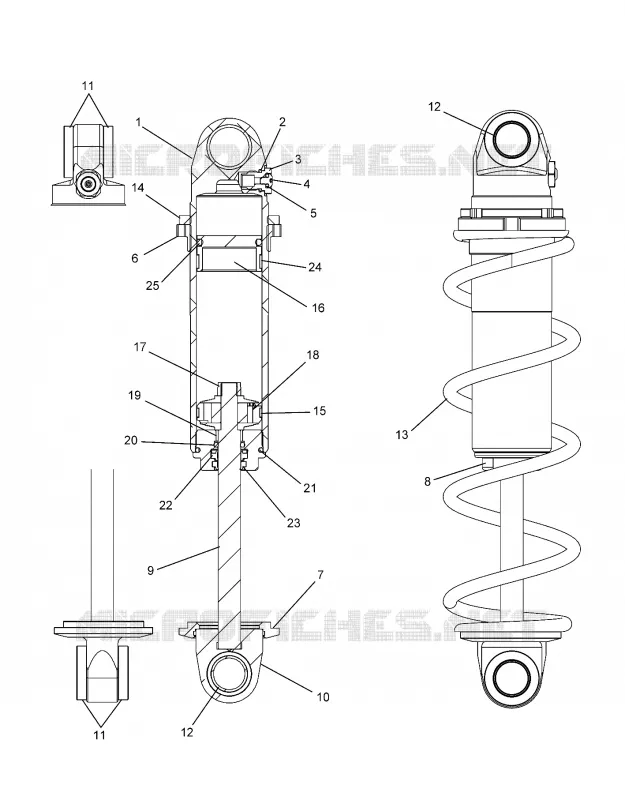

Find the detailed FRONT TRACK SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
