1
Engine displacement
850
2
Year
2019
3
Trim
850 AXYS SKS 155 SC SELECT
4
Parts Catalog
BATTERY/BOX AND CABLES
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, JACKSHAFT AND DRIVESHAFT
by
RECOIL STARTER
BATTERY/BOX AND CABLES
1
2
2
3
4
5
5
6
7
8
9
10
10
11
11
12
13
13
14
14
15
16
1
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
2
CABLE-1080MM 4 GA RED
4018198
4081538
$115,49 Unit Price incl. VAT
2
INSUL.CABLE SOL.
5410346
9999999
Not Available
3
CABLE-1020MM 4 GA BLACK
4018199
4081539
$125,99 Unit Price incl. VAT
4
BATTERY TO SOLENOID CABLE ASSEMBLY
2414664
2417138
$99,74 Unit Price incl. VAT
5
BATTERY BOLT KIT
2201357
$20,99 Unit Price incl. VAT
5
BATTERY SEALED NON SPILL RUSH 2
4013045
$215,24 Unit Price incl. VAT
6
BATTERY HEAT SHIELD
5262301
$52,49 Unit Price incl. VAT
7
BULB SEAL .375 350 CM
5521697350
Not Available
8
WELD-BATTERY BOX
1024159
$99,74 Unit Price incl. VAT
9
CL8.8 OLV-D
7518906
$6,29 Unit Price incl. VAT
10
HOOK- D
5224468
$17,84 Unit Price incl. VAT
10
BATTERY STRAP; RUBBER
5410608
5419141
$16,58 Unit Price incl. VAT
11
BOLT-M5X0.8X12 HXFLG LK
7518894
$2,09 Unit Price incl. VAT
12
BATTERY BOX BRACKET ASSEMBLY
1020323
1025682
$68,24 Unit Price incl. VAT
13
CLIP-EDGE 1-3MM THICKNESS
7082427
$10,49 Unit Price incl. VAT
14
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
15
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
16
CABLE BRAKE
7080427
9999999
Not Available

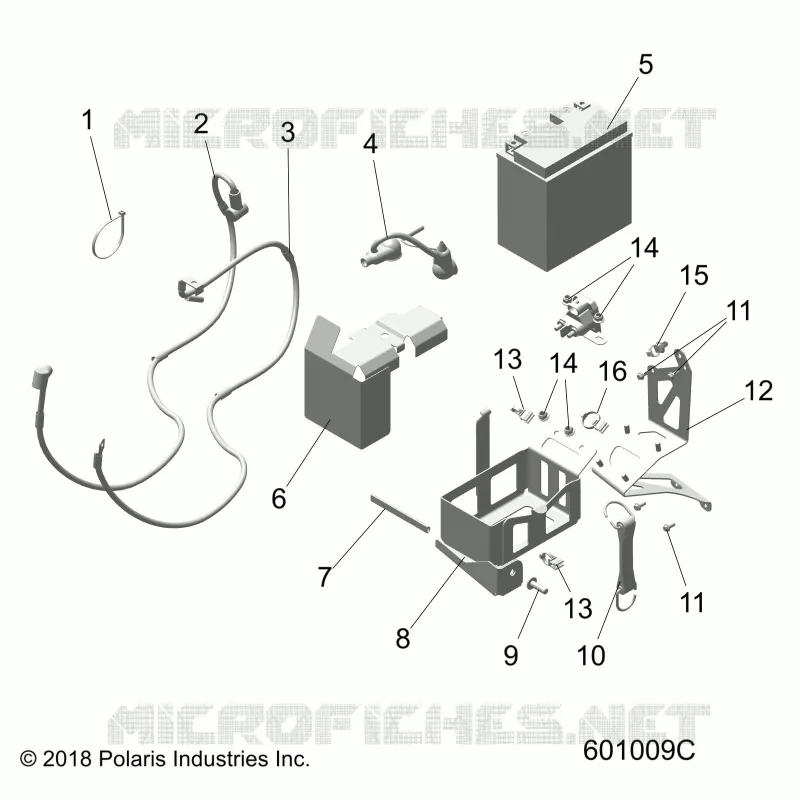

Find the detailed BATTERY/BOX AND CABLES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
