1
Engine displacement
850
2
Year
2019
3
Trim
850 AXYS SKS 155 SC SELECT
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
IGNITION COIL/SPARK PLUGS
by
OIL PUMP ASM.
ENGINE, AIR INTAKE SYSTEM
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
1
INTAKE VENT RIGHT
5450473
$68,24 Unit Price incl. VAT
2
INTAKE VENT; FOAM
5814024
$26,24 Unit Price incl. VAT
3
INTAKE VENT BACKER
5814025
$10,49 Unit Price incl. VAT
4
INTAKE VENT; LEFT
5450472
$68,24 Unit Price incl. VAT
5
SCR-TXTH-M6X1.0X20 T40 ZPB
7519112
$6,29 Unit Price incl. VAT
6
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
7
PLENUM; UPPER; BLACK PEARL
5451240666
Not Available
8
U CLIP; 6.0 MM X 1.0 MM
7547366
$9,44 Unit Price incl. VAT
9
SCREW
7516823
$5,76 Unit Price incl. VAT
10
1/4 TURN CLIP; 6 MM
7710808
$9,44 Unit Price incl. VAT
11
ASM-TUBE INTAKE
1205327
1206198
$188,99 Unit Price incl. VAT
12
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
13
DRAIN PLUG
5414472
$10,49 Unit Price incl. VAT
14
AIR SILENCER ASSEMBLY
1205669
$204,74 Unit Price incl. VAT
15
INTAKE; LOWER; FOAM
5813962
$26,24 Unit Price incl. VAT
16
SEAL FOAM
5810947
$8,39 Unit Price incl. VAT
17
CLAMP NARROW BAND
7080909
$14,69 Unit Price incl. VAT
18
BOLT 5/8 LONG TORX PAN HEAD
7518238
$7,34 Unit Price incl. VAT
19
PLENUM; LOWER
5452415
$194,24 Unit Price incl. VAT
20
PLENUM SUPPORT BRACKET
5261169
$19,94 Unit Price incl. VAT
21
RIVET 4.8 MM
7661973
$2,09 Unit Price incl. VAT
22
DART CLIP
7670067
$7,34 Unit Price incl. VAT

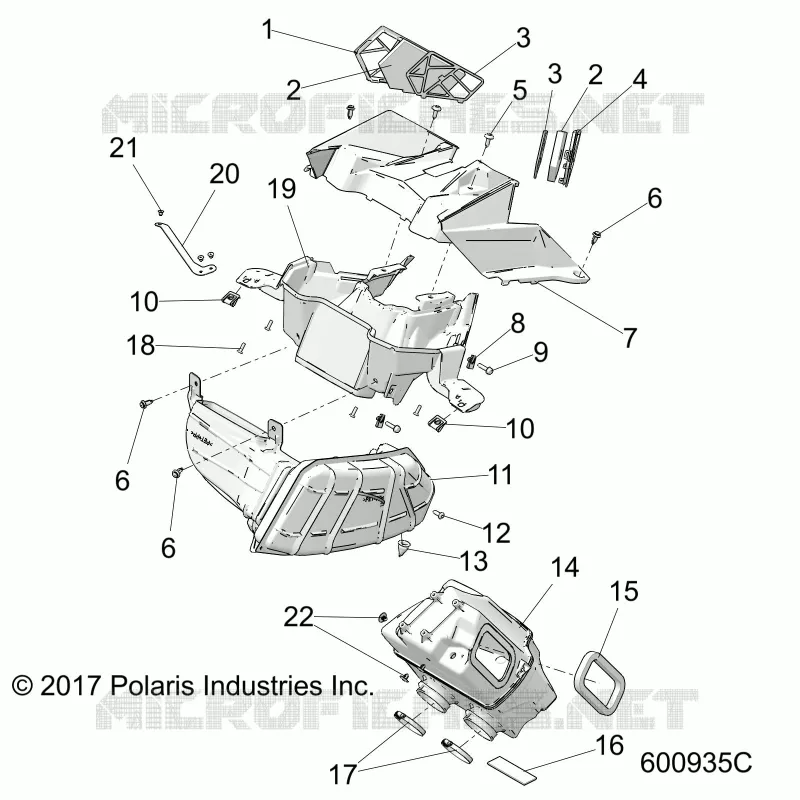

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
