1
Engine displacement
850
2
Year
2019
3
Trim
850 AXYS SKS 155 SC SELECT
4
Parts Catalog
CHASSIS, BULKHEAD ASM.
5
Parts Diagram
Parts Catalog
ENGINE, REED VALVE AND THROTTLE BODY ADAPTOR
by
SWITCHES, SENSORS AND COMPONENTS
CHASSIS, BULKHEAD ASM.
-
-
-
1
2
2
3
4
5
6
6
6
6
6
7
8
8
8
8
8
8
9
10
10
10
10
11
12
12
13
14
14
14
15
16
17
18
19
20
21
21
22
22
-
LORD 406 REPAIR KIT; 50 ML
2204171
2830614
$517,64 Unit Price incl. VAT
-
MIXING NOZZLES KIT
2204172
2830615
$14,69 Unit Price incl. VAT
-
ADJESIVE CARTRIDGE KIT
2204400
672204400
Not Available
1
CROSSOVER TUBE; EXTRUDED
5140781
$173,24 Unit Price incl. VAT
2
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT
3
ASM-NUT PLATE M8 47MM
1020829
$23,09 Unit Price incl. VAT
4
SCR-TXTH-M8X1.25X15 8.8ZOD P80
7519109
$3,14 Unit Price incl. VAT
5
BULKHEAD FLOOR
5256849
$47,24 Unit Price incl. VAT
6
RIVET
7661637
$2,09 Unit Price incl. VAT
7
BOLT-CARR M8X1.25X25 8.8 ZOD
7520297
$7,34 Unit Price incl. VAT
8
CL8.8 OLV-D
7518906
$6,29 Unit Price incl. VAT
9
BRACE ASSEMBLY; LOWER; LEFT
1023784
$209,99 Unit Price incl. VAT
10
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
11
FLANGETTE-3BOLT 0MM OFFSET
5258020
$23,09 Unit Price incl. VAT
12
CLIP WITH STUD ASSEMBLY; LEFT; RMK
1023155
$561,74 Unit Price incl. VAT
12
WHEEL STUD; 8 MM X 1.25 MM X 48
7519204
$36,74 Unit Price incl. VAT
13
BOLT-M6X1.0X15 PH/TX-OLIVE D
7518656
$7,34 Unit Price incl. VAT
14
SCREW
7516732
$3,14 Unit Price incl. VAT
15
BRACKET IDLER ASSEMBLY; TOP
1019666
1026546
$47,24 Unit Price incl. VAT
16
CHAINCASE ASSEMBLY; INTERMD; RMK
1333255
9999999
Not Available
17
SCR-TXTH M8X1.25X35 8.8ZOD P80
7519049
$13,64 Unit Price incl. VAT
18
NUT-HEX-M6X1.0 8 ZOD NYL
7547505
$4,19 Unit Price incl. VAT
19
WASHER-6.2X14.25X2 ZC
7556588
$4,19 Unit Price incl. VAT
20
STEPPED STUD PLATE ASM 6 MM X 4 MM
1020066
$26,24 Unit Price incl. VAT
21
DOWEL PIN; 6 MM X 10 MM
5132835
$4,19 Unit Price incl. VAT
21
BULKHEAD COOLER ASSEMBLY
1241233
$703,49 Unit Price incl. VAT
22
WHEEL STUD; 8 MM X 1.25 MM X 48
7519204
$36,74 Unit Price incl. VAT
22
CLIP WITH STUD ASSEMBLY; RIGHT
1023783
$503,99 Unit Price incl. VAT

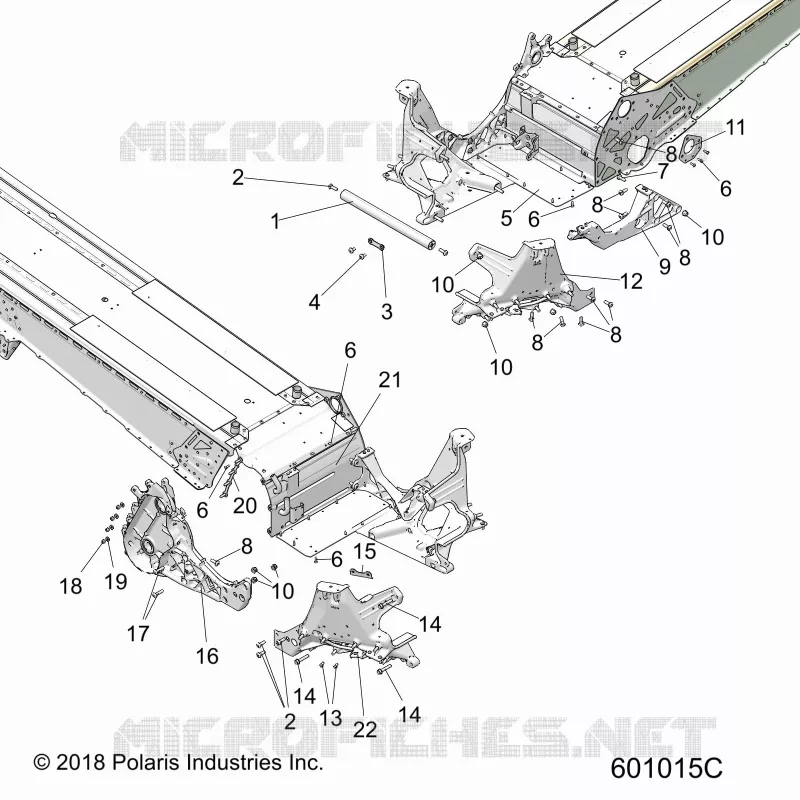

Find the detailed CHASSIS, BULKHEAD ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
