1
Engine displacement
500
2
Year
2001
3
Trim
WORKER 500 - A01CH50EB
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
DECALS
by
EXHAUST SYSTEM
COOLING SYSTEM
1
HOSE CLAMP
7080807
$17,84 Unit Price incl. VAT
2
CAP-PRESSURE 13 PSI
1240044
1240508
$89,24 Unit Price incl. VAT
3
REMOTE COOLANT FILTER
5433364
$73,49 Unit Price incl. VAT
4
BRKT REMOTE COOLANT FILL
5243505067
Not Available
5
RIVET
7661637
$2,09 Unit Price incl. VAT
6
FLEXGUARD-PLASTIC GUARD
5433948
9999999
Not Available
7
UPPER ENGINE HOSE
5411783
$125,99 Unit Price incl. VAT
8
CLAMP-ROTO SPRING 1"
7080827
9999999
Not Available
9
BOLT
7512232
$2,09 Unit Price incl. VAT
10
FILLER NECK HOSE
5411632
9999999
Not Available
11
CLAMP-ROTO CLIP
7080826
9999999
Not Available
12
SCREW
7517659
9999999
Not Available
13
FAN AND MOTOR ASSEMBLY; SPAL
2410123
$289,79 Unit Price incl. VAT
14
CLIP U
7670111
9999999
Not Available
15
NUTSERT HEX
7547069
$7,34 Unit Price incl. VAT
16
MOUNT; RUBBER
3110032
9999999
Not Available
17
MOUNT SPACER
5020572
9999999
Not Available
18
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
19
SHROUD-FAN
5433059
9999999
Not Available
20
SCREW
7512084
$2,09 Unit Price incl. VAT
21
THERMAL HARNESS SENSOR
4010161
9999999
Not Available
22
RADIATOR
1240045
9999999
Not Available
23
WASHER
7552605
9999999
Not Available
24
BOLT
7512113
$7,34 Unit Price incl. VAT
25
COVER-RADIATOR W/MESH
5433317
9999999
Not Available
26
O-RING
5410607
9999999
Not Available
27
VALVE-PLASTIC DRAIN
7052296
9999999
Not Available
28
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
29
RADIATOR BRACKET; LOWER; GS BLK
5243503067
Not Available
30
SCREW
7517386
$2,09 Unit Price incl. VAT
31
STRAP-PANDUIT PANEL TIE
7080890
9999999
Not Available
32
ENGINE HOSE; LOWER
5411782
9999999
Not Available
33
PLASTIC HOSEGUARD 18
5521550
9999999
Not Available
34
CLAMP-HOSE 1.312 VINYL COATED
7080851
9999999
Not Available
35
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
36
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
37
GASKET
5810279
$4,19 Unit Price incl. VAT
38
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
39
TANK; SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
40
FUEL LINE; 1/4 ID
84500031525
Not Available
41
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT

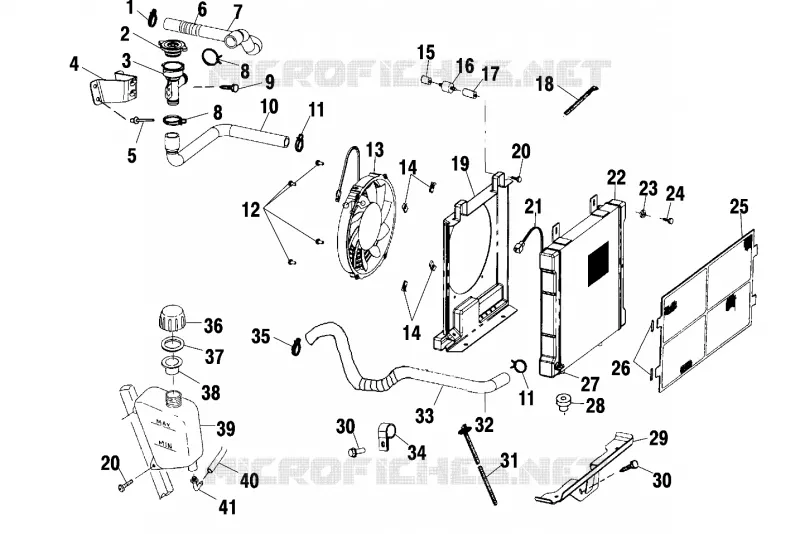

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
