Parts Catalog
EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
FUEL TANK
EXHAUST SYSTEM
1
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
2
WASHER
7555716
$3,14 Unit Price incl. VAT
3
WASHER RUBBER
5410436
9999999
Not Available
4
WASHER
7555863
$4,19 Unit Price incl. VAT
5
BUSHING
5010192
$12,59 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
DAMPENER
5410241
5412508
$9,44 Unit Price incl. VAT
8
BOLT
7515316
$4,19 Unit Price incl. VAT
9
EXHAUST SILENCER BLK
1261042029
Not Available
10
BOLT
7512666
$4,19 Unit Price incl. VAT
11
EXHAUST SEAL
5243518
$52,49 Unit Price incl. VAT
12
SPRING
7041804
$16,79 Unit Price incl. VAT
13
EXHAUST PIPEBLK
1261040029
Not Available
14
HEAT SHIELD EXHAUST
5241678
9999999
Not Available
15
WASHER
7555935
$4,19 Unit Price incl. VAT
16
SCREW
7515197
$2,09 Unit Price incl. VAT

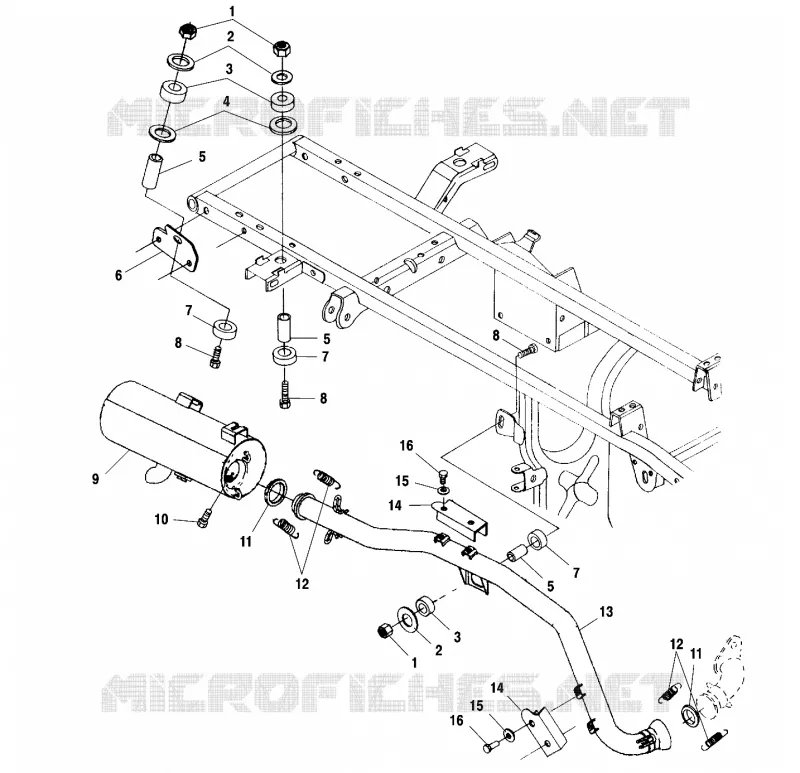

Find the detailed EXHAUST SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
