1
Engine displacement
500
2
Year
2001
3
Trim
WORKER 500 - A01CH50EB
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING
by
AIR BOX
ENGINE MOUNTING
1
STRAP-FUEL PUMPMTGBLK
5243829067
Not Available
2
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
3
SCREW 10-24X5/8 (10)
7517756
$2,09 Unit Price incl. VAT
4
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
5
HOSE (.25 IDX1.75LG.)
5811490
9999999
Not Available
6
FUEL LINE; 600 CM
8450040600
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
9
BOOT CARB
5410995
9999999
Not Available
9
CARBURETOR BOOT 40 MM
5412004
9999999
Not Available
10
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
11
FUEL LINE; 1/4 ID
84500031525
Not Available
12
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
13
MOUNT; RUBBER
3110032
9999999
Not Available
14
WASHER
7552605
9999999
Not Available
15
HEX NUT
7542105
$7,34 Unit Price incl. VAT
16
STRAP-CARB MNTBLK
5245055067
Not Available
17
NUTSERT HEX
7547069
$7,34 Unit Price incl. VAT
18
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
19
BOLT
7512315
$9,44 Unit Price incl. VAT
20
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
21
NUT
7547108
$9,44 Unit Price incl. VAT
22
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
25
MOUNT RUBBER FRONT
3110046
9999999
Not Available
26
CLAMP NYLON CABLE
7080539
$9,44 Unit Price incl. VAT
27
RIVET
7621462
$2,09 Unit Price incl. VAT
28
FRAME SUPPORT STRAP; MEDIUM GLOSS BLACK
5224658067
Not Available
29
BOLT
7512566
9999999
Not Available
30
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
31
WASHER
5210748
$7,34 Unit Price incl. VAT
32
BUSHING
5430261
$13,64 Unit Price incl. VAT
33
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
34
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
35
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
36
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
37
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
38
SCREW
7515417
9999999
Not Available
39
MOUNT FR.ENGINE BLK.
5241150067
Not Available
40
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
41
WASHER
7555801
$7,34 Unit Price incl. VAT
42
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
43
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
44
MANIFOLD 1.625BLK
1261043029
Not Available
45
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
46
ENG.EH50PLE-04
3085822
9990000
Not Available
47
MOUNT ENG TOP BLK
5241453067
Not Available
48
BOLT
7512232
$2,09 Unit Price incl. VAT
49
CABLE GND-ENGINE
4010132
9999999
Not Available
50
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT

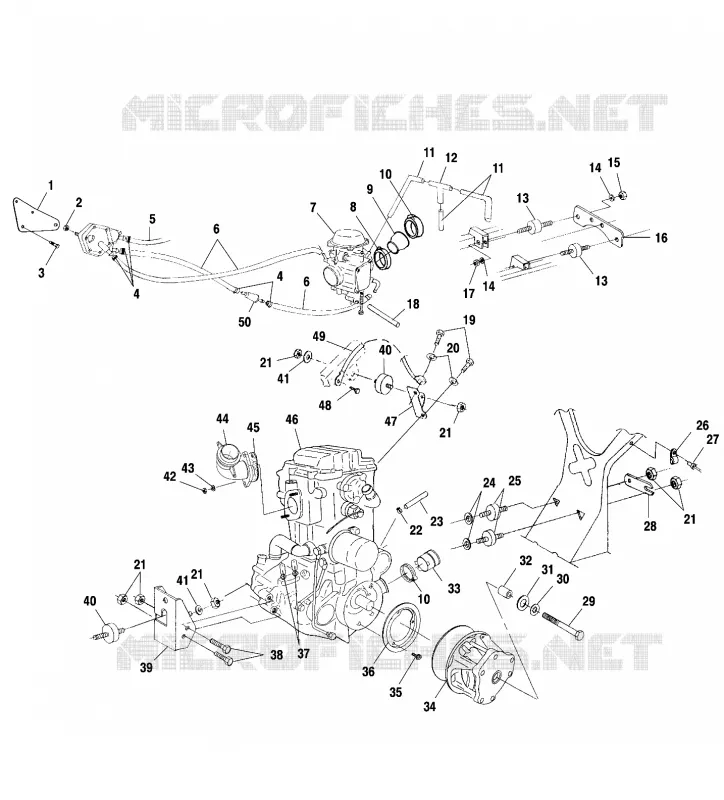

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
