Engine displacement
400
2
Year
2001
3
Trim
XPLORER 400 - A01CG38CA
4
Parts Catalog
PISTON CRANKSHAFT
5
Parts Diagram
Parts Catalog
ELECTRICAL/TAILLIGHT
by
RECOIL STARTER
PISTON CRANKSHAFT
1
1
1
1
1
1
1
1
1
2
2
3
4
4
4
4
4
4
4
4
4
5
6
7
8
9
10
10
11
11
12
13
14
15
15
15
15
16
17
17
18
19
20
21
22
22
22
22
23
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
STANDARD PISTON RING
3084737
9999999
Not Available
1
PISTON RING .25 MM
3084738
9999999
Not Available
1
PISTON RING .50MM O/S
3084739
9999999
Not Available
2
PISTON PIN CLIP
3084167
2207579
$356,99 Unit Price incl. VAT
3
PISTON PIN
3083838
2207579
$356,99 Unit Price incl. VAT
4
STANDARD PISTON
3085886
9999999
Not Available
4
PISTON .010 IN
3085887
9999999
Not Available
4
PISTON .020 IN
3085888
9999999
Not Available
5
BALANCER
3087042
9999999
Not Available
6
PLATE
3086768
9999999
Not Available
7
BOLT FLANGE
3086769
9999999
Not Available
8
GEAR DRIVE
3084156
9999999
Not Available
9
WASHER-GUIDE
3086764
9999999
Not Available
10
O RING
3084160
9999999
Not Available
11
COLLAR
3086763
9999999
Not Available
12
NUT SLIT
3086762
9999999
Not Available
13
WASHER
3086767
9999999
Not Available
14
LOCK NUT
3083905
9999999
Not Available
15
CRANKSHAFT ASSEMBLY
3084776
9999999
Not Available
15
CRANKSHAFT #1MAG SIDE
3084149
9999999
Not Available
16
KEY; WOODRUFF
3080130
3081543
$26,24 Unit Price incl. VAT
17
CRANK PIN SPACER
3084155
9999999
Not Available
18
BEARING LARGE END
3084154
9999999
Not Available
19
SMALL END BERAING
3084168
9999999
Not Available
20
CONNECTING ROD
3084153
9999999
Not Available
21
CRANKSHAFT #2PTO SIDE
3084777
9999999
Not Available
22
SPACER .2 MM
3086765
9999999
Not Available
22
SPACER
3086766
9999999
Not Available
23
PIN CRANK
3084152
9999999
Not Available

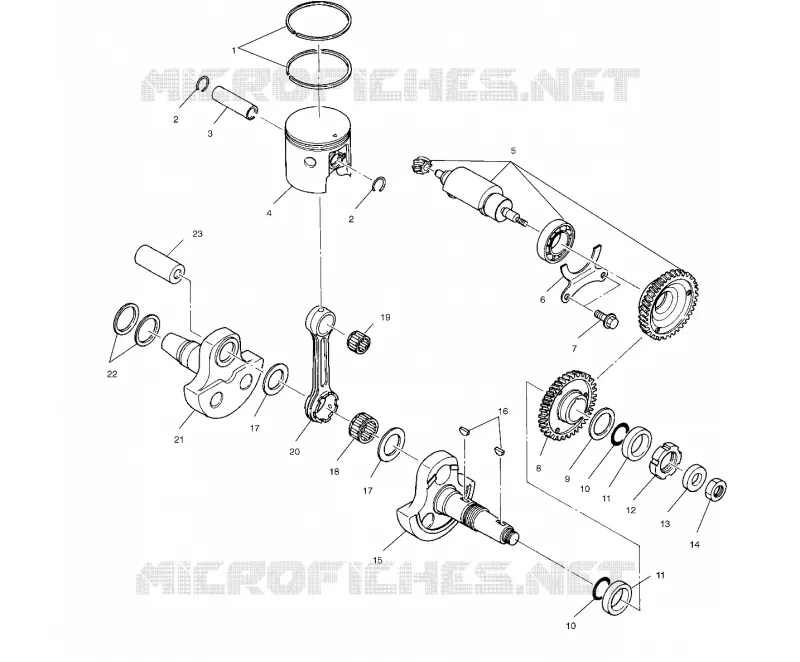

Find the detailed PISTON CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
