Parts Catalog
DRIVE TRAIN ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, AND ULTRA RMK 09 (4931683168B014)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM ULTRA RMK 0960978 (4931683168B013)
by
FRONT TORQUE ARM ULTRA SKS 0960578 AND EUROPEAN ULTRA SKS E960578 (4931683168C001)
DRIVE TRAIN ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, AND ULTRA RMK 09 (4931683168B014)
1
BOLT
7515369
$9,44 Unit Price incl. VAT
2
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
4
SPACER DRIVEN CLUTCH
5020645
5135611
$15,74 Unit Price incl. VAT
5
SPACER-1.00 X 1.25 X .38
5020837
9999999
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SNOWMOBILE DRIVE BELT
3211042
$141,21 Unit Price incl. VAT
8
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
9
BUSHING
7556509
$3,14 Unit Price incl. VAT
10
FLANGE RD;RELUBE W/ZERK
5241359
9999999
Not Available
11
JACKSHAFT GASKET; BLACK
5811095
9999999
Not Available
12
BEARING 1X52MM SPHER.
3514523
9999999
Not Available
13
FLANGETTE ASM;;W/ SCREWS
1012434
9999999
Not Available
14
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
15
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
16
KEY-SQUARE
7721204
9999999
Not Available
17
JACKSHAFT ASMLONGPRESSBLK
1332179067
Not Available
18
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
19
DISC ASM BRAKE
1910086
9999999
Not Available
20
DRIVESHAFT ASMHDPRESS BRG
1590253
9999999
Not Available
21
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
22
O-RING
5410613
$3,66 Unit Price incl. VAT
23
DIPSTICK
5431419
1332143
$89,24 Unit Price incl. VAT
24
O-RING
5410675
$3,14 Unit Price incl. VAT
25
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
26
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
27
BOLT CARRIAGE
7515428
9999999
Not Available
28
SHAFT DRIVE H.S.PRSBRG.
6230091
Not Available
29
SPROCKET HALF9T
5430993
9999999
Not Available
30
SPROCKET 9T
5430571
9999999
Not Available
31
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
32
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
33
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
34
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
35
BEARING 1X52MM SPHER.
3514524
9999999
Not Available

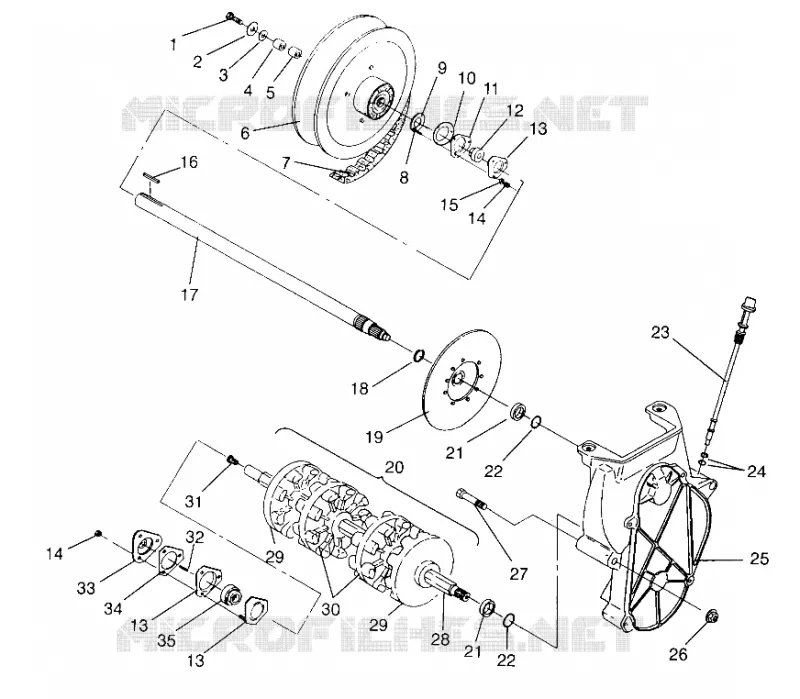

Find the detailed DRIVE TRAIN ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, AND ULTRA RMK 09 (4931683168B014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
