1
Engine displacement
autre
2
Year
1996
3
Trim
ULTRA RMK - 0960978
4
Parts Catalog
EXHAUST SYSTEM ULTRA SKS 0960578, EURO ULTRA SKS E960578, AND ULTRA RMK 09 (4931683168C006)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, AND ULTRA RM (4931683168C005)
by
CARBURETOR ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, AND ULTRA RMK 096 (4931683168C013)
EXHAUST SYSTEM ULTRA SKS 0960578, EURO ULTRA SKS E960578, AND ULTRA RMK 09 (4931683168C006)
1
RESONATOR
1260695029
Not Available
2
PROBE TEMP.SENSING
4040067
9999999
Not Available
3
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
4
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
5
WASHER RUBBER
5410436
9999999
Not Available
6
BUSHING
5010192
$12,59 Unit Price incl. VAT
7
DAMPENER
5410241
5412508
$9,44 Unit Price incl. VAT
8
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
9
BRKT.WELD
1260744067
Not Available
10
RIVET INTERLOCK(50)
7661639
7661130
$2,09 Unit Price incl. VAT
11
BOLT-CARRIAGE
7512262
9999999
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
MANIFOLD 3 CYL.
1260626029
Not Available
16
EXHAUST SOCKET SEAL
3610046
$62,99 Unit Price incl. VAT
17
SPRING; EXHAUST
7042031
7041687
$12,59 Unit Price incl. VAT
18
BRKT-SPRING RETAINER
5211659
9999999
Not Available
19
SPRING
7042029
$10,49 Unit Price incl. VAT
20
VIBRATION DAMPENER
5410467
9999999
Not Available
21
MUFFLER Substituted by 2200951
1260697029
Not Available
22
RIVET
7621467
$2,09 Unit Price incl. VAT
23
DEFLECTOR-SNOW;EXH.
5222615
9999999
Not Available
24
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
25
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
26
HAT EXH.OUTLET BLK
1260743029
Not Available
27
RIVET
7661637
$2,09 Unit Price incl. VAT
28
BRKT BUMP.RESONATOR BLK.
5241429067
Not Available
29
WASHER THRUST
7555788
9999999
Not Available

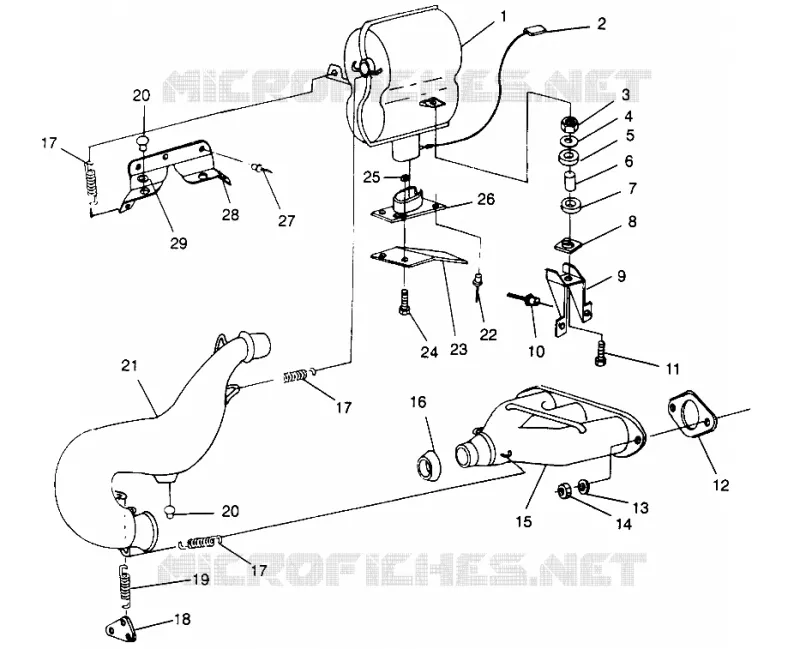

Find the detailed EXHAUST SYSTEM ULTRA SKS 0960578, EURO ULTRA SKS E960578, AND ULTRA RMK 09 (4931683168C006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
