CONSOLE ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, AND ULTRA RMK 096097 (4931683168A012) for POLARIS ULTRA RMK - 0960978 from 1996

TOOL KIT ULTRA SKS 0960578, EURO ULTRA SKS E960578, AND ULTRA RMK 0960978 (4931683168D004)

CONSOLE ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, AND ULTRA RMK 096097 (4931683168A012)

1

CONSOLE

5222756067

Not Available

2

CHOKE CONTROL KIT

2200189

9999999

Not Available

3

CHOKE CABLE

7080283

9999999

Not Available

4

HI/LO HEATER GRIP

4110113

9999999

Not Available

5

HOUSING SOCKET

4020133

9999999

Not Available

6

HOUSING

4020057

9999999

Not Available

7

HARNESS MAIN WIRE

2460579

Not Available

8

HOUSING 1 CIRCUIT

4020153

9999999

Not Available

9

DECAL CONSOLE [No Longer Available]

7073075

Not Available

10

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

11

SPACER

5020864

Not Available

12

SWITCH EXH.TEMP

4110197

9999999

Not Available

13

REGULATOR (14.3VAC) LR-7

4060123

2203873

$188,99 Unit Price incl. VAT

14

SPACERREGULATOR

5211573

9999999

Not Available

15

WASHER

7555817

9999999

Not Available

16

SWITCH TETHER

4110156

9999999

Not Available

17

SCREW

7512092

9999999

Not Available

18

RIVET INTERLOCK

7661638

$2,09 Unit Price incl. VAT

19

CAP W/KEY

5410611

9990000

Not Available

20

KIT IGN. SWITCH

2200357

9999999

Not Available

21

NUT IGN.SWITCH(10)

7543101

9999999

Not Available

22

NUT-CHOKE SLIDE

7080229

$36,74 Unit Price incl. VAT

23

WASHER-LOCK

7571610

$7,34 Unit Price incl. VAT

24

RIVET(50)

7661643

7661130

$2,09 Unit Price incl. VAT

25

RECOIL GUIDE

5431385

$19,94 Unit Price incl. VAT

26

BRKT ROPE GUIDE BLK.

5222682067

Not Available

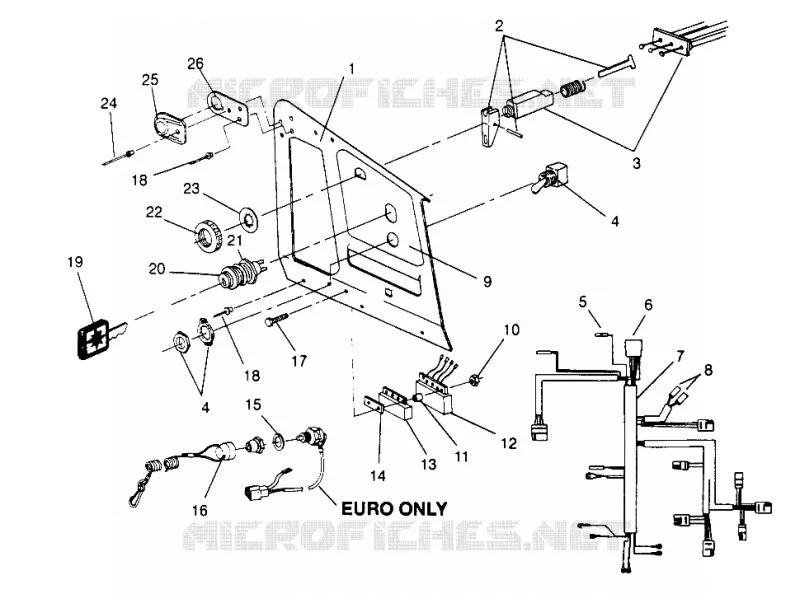

Find the detailed CONSOLE ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, AND ULTRA RMK 096097 (4931683168A012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
