Engine displacement
800
2
Year
2005
3
Trim
SPORTSMAN 800 EFI - A05MH76AC/AU/AW
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
AIR BOX
ENGINE MOUNTING
1
2
2
2
2
3
4
5
5
6
7
8
9
10
11
12
12
13
14
15
15
16
17
16
19
20
21
22
23
24
1
KIT-SHORT BLOCK 800 EFI
2202915
9990000
Not Available
2
NUT
7547108
$9,44 Unit Price incl. VAT
3
ENGINE MOUNT; LOWER; FRONT; GS BLK
5244771067
Not Available
4
WASHER
7555823
$7,34 Unit Price incl. VAT
5
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
6
BRKT-TORQUE STOP PLTD
5245043
9999999
Not Available
7
BOLT-3/8-16X7/8 HEX FLANGE GR5
7518364
$3,14 Unit Price incl. VAT
8
BUSHING
5430261
$13,64 Unit Price incl. VAT
9
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
10
BOLT 7/16X20X8
7518197
7519287
$52,49 Unit Price incl. VAT
11
WASHER
5210748
$7,34 Unit Price incl. VAT
12
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
13
MOUNT RUBBER REAR 60 DURO
3021119
9999999
Not Available
14
CLAMP HOSE S.S.(10)
7080451
$13,64 Unit Price incl. VAT
15
BOOT CLTCH INTAKE 2.25I.D.
5411944
9999999
Not Available
15
BOOT-CLUTCH INTAKE;2.25 I.D.
5412634
9999999
Not Available
16
SCREW
7516734
$5,76 Unit Price incl. VAT
17
BRKT-MOUNT ENGINE RH PLATED
5248701
9999999
Not Available
18
SCREW
7516734
$5,76 Unit Price incl. VAT
19
CHECK VALVE
7052038
$20,99 Unit Price incl. VAT
20
Tubing
835001806
Not Available
21
GUIDE THROTTLE CABLE
3131514
3130543
$62,99 Unit Price incl. VAT
22
O-RING COVER AND ASSEMBLY
1202578
9999999
Not Available
23
SHOULDER SCREW
3131515
9999999
Not Available
24
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT

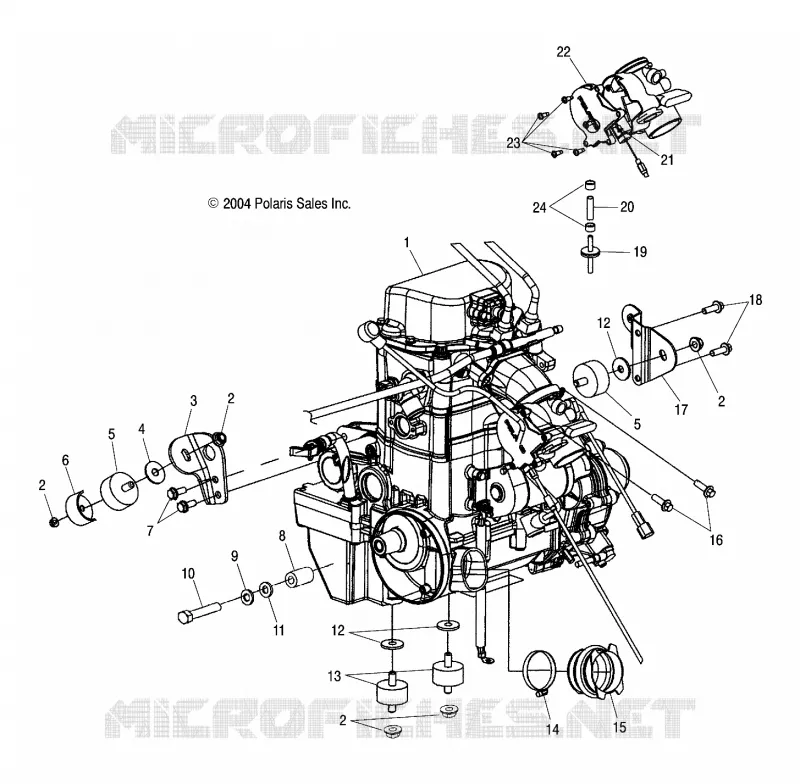

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
