FRONT BRAKE CALIPER for POLARIS SPORTSMAN TOURING 570 EFI/EPS from 2018

FRONT BRAKE CALIPER

-

BRAKE CALIPER; FRONT; LEFT; 1.19 MM

1911540

$488,24 Unit Price incl. VAT

-

BRAKE CALIPER; FRONT; RIGHT; 1.19 MM

1911541

$488,24 Unit Price incl. VAT

1

PISTON AND SEAL KIT

1930665

$104,99 Unit Price incl. VAT

2

BRAKE BOOT KIT; FRONT

1930642

$20,99 Unit Price incl. VAT

3

FRONT BRAKE PAD KIT ASSEMBLY

2202412

$98,16 Unit Price incl. VAT

4

SQUARE MOLDED RING; .103 X .134

5410780

$19,94 Unit Price incl. VAT

5

SQUARE MOLDED RING; .094

5410779

$19,94 Unit Price incl. VAT

6

PISTON-BRAKE LONG

5132294

1930665

$104,99 Unit Price incl. VAT

7

SCR-M10X1.0X8 SOC SET-OD

7518863

$17,84 Unit Price incl. VAT

8

CALIPER MOUNT ASSEMBLY

1910513

$99,74 Unit Price incl. VAT

9

PIN BUSHING BOOT

5412505

$6,29 Unit Price incl. VAT

10

SCR-M7X1.0 BLEEDER OLIVE D

7081343

$10,49 Unit Price incl. VAT

11

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

12

PIN SEAL BOOT

5412506

$6,29 Unit Price incl. VAT

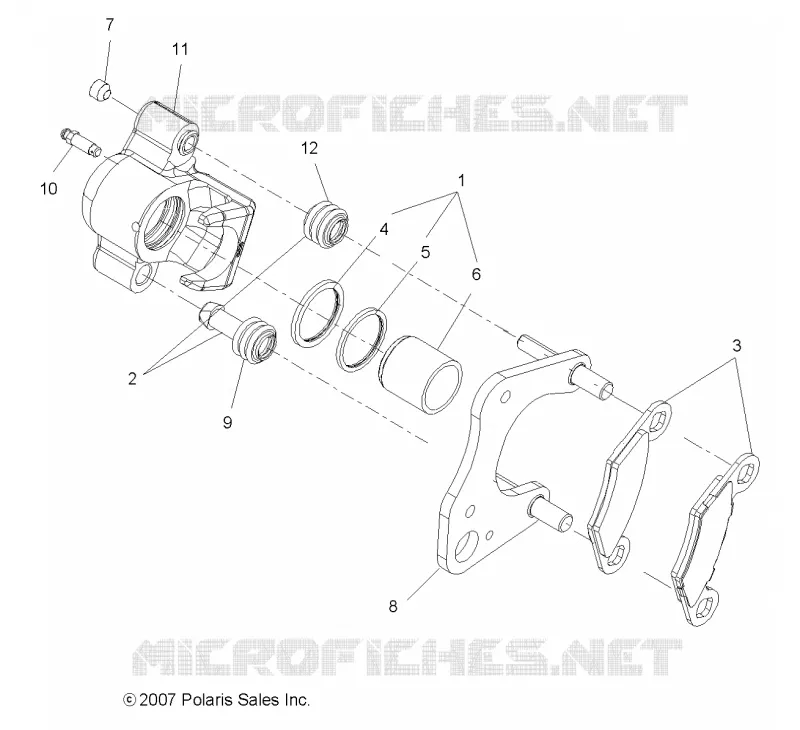

Find the detailed FRONT BRAKE CALIPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
