FRONT CAB AND SIDE PANELS for POLARIS SPORTSMAN TOURING 570 EFI/EPS from 2018

FRONT CAB AND SIDE PANELS

1

CAB ASSEMBLY; FRONT

2636575293

Not Available

1

ASM-CAB FR SVC 2UP HDPE I.RED

2636423293

Not Available

1

CAB ASSEMBLY; FRONT; VELOCITY BLUE

2636423689

Not Available

2

SIDE PANEL ROUTER; LEFT; VELOCITY BLUE

5454893689

Not Available

2

SIDE PANEL; LEFT; INDY RED

5454893293

Not Available

3

COVER; FRONT; INDY RED

5439069293

Not Available

3

HDPE COVER; FRONT; VELOCITY BLUE

5439069689

Not Available

4

PANEL AND SHIELD ASM RIGHT VELOCITY BLUE

2636442689

Not Available

4

PANEL/SHIELD ASSEMBLY; RIGHT; INDY RED

2636442293

Not Available

5

BOLT

7512232

$2,09 Unit Price incl. VAT

6

TORX SCREW; #14 X 3/4

7519045

$6,29 Unit Price incl. VAT

7

FLAT WASHER

7555859

$2,09 Unit Price incl. VAT

8

PLUG MOUNT BRACKET

5258497

$10,49 Unit Price incl. VAT

9

CARRIAGE BOLT

7512193

$4,19 Unit Price incl. VAT

10

SCREW

7515399

9999999

Not Available

11

NYLOK FLANGED NUT

7542153

$3,14 Unit Price incl. VAT

12

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

13

FLAT WASHER

7555960

$7,34 Unit Price incl. VAT

14

BULB SEAL .375 350 CM

5521697350

Not Available

15

COMPARTMENT PLUG

5412981

5418084

$6,29 Unit Price incl. VAT

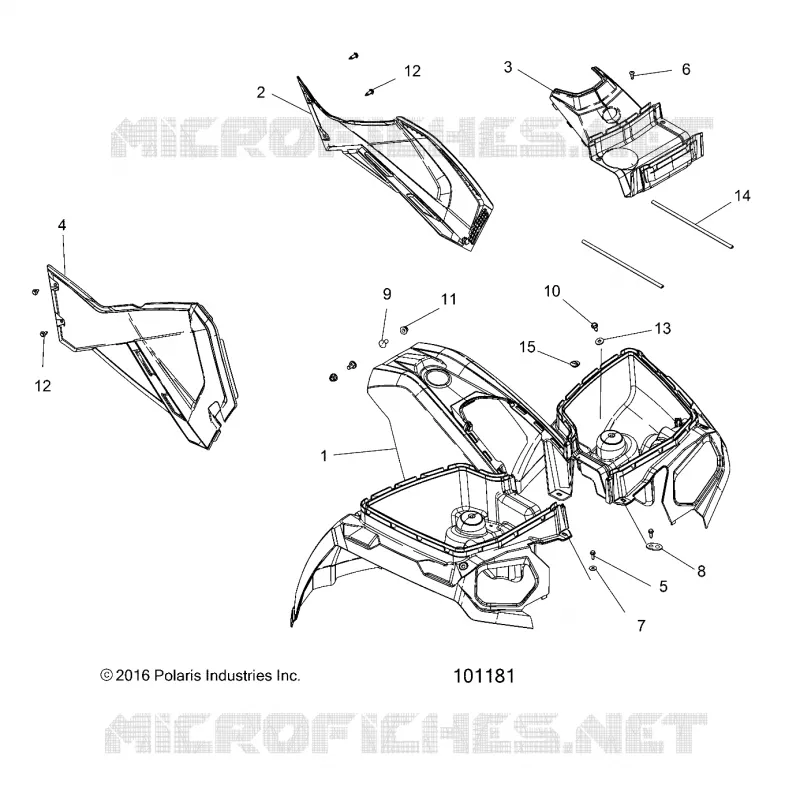

Find the detailed FRONT CAB AND SIDE PANELS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
