DRIVE TRAIN, SECONDARY CLUTCH for POLARIS SPORTSMAN TOURING 570 EFI/EPS from 2018

DRIVE TRAIN, REAR DRIVE SHAFT

ENGINE, CYLINDER HEAD, CAMS AND VALVES

DRIVE TRAIN, SECONDARY CLUTCH

1

DRIVEN CLUTCH ASSEMBLY; 37-41; BLACK

1322960

$614,24 Unit Price incl. VAT

2

ORV DRIVE BELT; FOR EBS CLUTCH

3211113

$128,09 Unit Price incl. VAT

3

WASHER .906 X 1.38 X .060 IN

7556120

$2,09 Unit Price incl. VAT

3

WASHER .906 X 1.38 X .030 IN

7556454

$8,39 Unit Price incl. VAT

3

BUSHING-.906 X 1 3/8 X 7 GA-Y

7556813

$9,44 Unit Price incl. VAT

4

DOMED WASHER; SMALL

5250562

$4,19 Unit Price incl. VAT

5

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

6

BOLT

7515327

$10,49 Unit Price incl. VAT

7

BOLT-8-32X7/8 PN/TRX GR5 Y

7520176

$7,34 Unit Price incl. VAT

8

BUTTON

5450873

$11,54 Unit Price incl. VAT

9

WASHER 1.505 X 2.00 X 0.30

7556804

$1,56 Unit Price incl. VAT

9

WASHER 1.50 X 2.00 X .025

7556076

$9,44 Unit Price incl. VAT

9

WASHER 1.5 X 2.0 X .020

7555898

$2,09 Unit Price incl. VAT

10

BUSHING MOVEABLE 1/2 INCH

3576504

$41,99 Unit Price incl. VAT

11

BUSHING MOVEABLE 1 IN

3576511

$52,49 Unit Price incl. VAT

12

CLUTCH SPRING; CHROME/BLACK

7041782

$115,49 Unit Price incl. VAT

13

STATIONARY RAMP

5132344

5145721

Not Available

14

SPACER-1.350X1.750X.020-YW/TAB

5244116

$13,64 Unit Price incl. VAT

15

RETAINING RING

7710448

$5,76 Unit Price incl. VAT

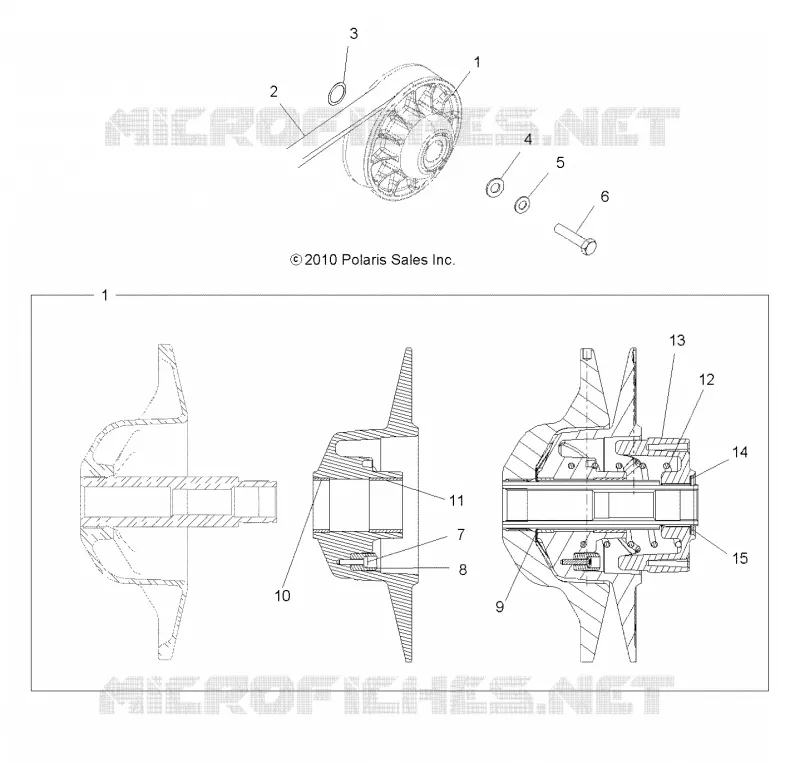

Find the detailed DRIVE TRAIN, SECONDARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
