1
Engine displacement
700
2
Year
1999
3
Trim
700 SKS - 099SS7AS
4
Parts Catalog
RECOIL STARTER
5
Parts Diagram
Parts Catalog
WATER PUMP
by
TOOL KIT
RECOIL STARTER
-
1
2
3
4
5
5
5
6
7
8
9
10
11
-
1
2
3
4
5
5
5
6
7
8
9
10
11
-
RECOIL ASM.
1201814
9999999
Not Available
1
NUT SS.
3040163
9999999
Not Available
2
PLATE FRICTION
3040164
9999999
Not Available
3
SPRING FRICTION
3040167
9999999
Not Available
4
RATCHET
3040165
9999999
Not Available
5
SPRING RETURN
3040166
9999999
Not Available
6
REEL
3040168
9999999
Not Available
7
SPRING SPIRAL
3040170
3023393
$278,24 Unit Price incl. VAT
8
HSG;RECOIL STARTER
3040160
9999999
Not Available
9
BUSHING ROPE SLIDE
3040171
$6,08 Unit Price incl. VAT
10
SCREW
7516823
$5,76 Unit Price incl. VAT
11
STARTER ROPE
3040169
$47,24 Unit Price incl. VAT

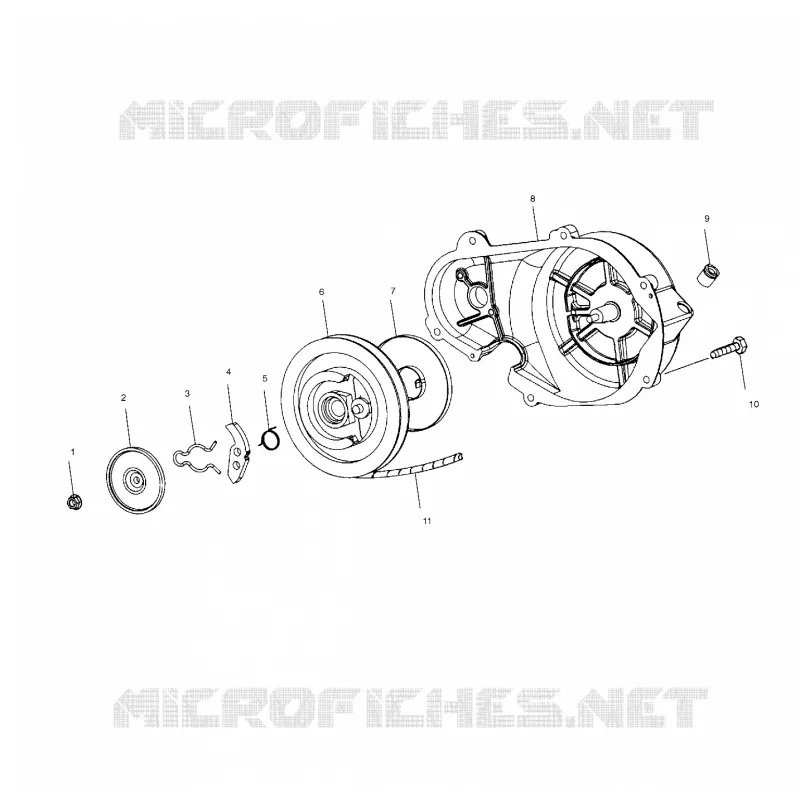

Find the detailed RECOIL STARTER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
