1
Engine displacement
700
2
Year
1999
3
Trim
700 SKS - 099SS7AS
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
PRIMER
by
OIL TANK/AIR BOX
ENGINE MOUNTING
1
2
3
4
5
6
7
8
8
8
9
9
10
11
12
13
14
14
15
16
16
16
16
16
16
16
16
16
16
17
17
17
17
17
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
8
8
9
9
10
11
12
13
14
14
15
16
16
16
16
16
16
16
16
16
16
17
17
17
17
17
17
18
19
20
21
22
23
24
25
26
27
28
29
1
SCREW SPEC.CLUTCH
7517347
9999999
Not Available
2
WASHER
7556003
$11,54 Unit Price incl. VAT
3
CABLE THROTTLE TWIN
7080721
9999999
Not Available
4
SHORT BLK SN70-70 1201770 [No Longer Available] Note: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston & crankshaft assembly. Prior authoriz
2201362
Not Available
5
SPARK PLUG
3070165
$7,34 Unit Price incl. VAT
6
WASHER(10)
7555944
9999999
Not Available
7
RING-E RET.
7710427
9999999
Not Available
8
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
9
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
10
HANDLE RECOIL
5431499
9999999
Not Available
11
MOUNT ENGINE
3110072
9999999
Not Available
12
NUT
7547022
9999999
Not Available
13
PLATE ENG.MOUNT
5241588
Not Available
14
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
15
BOLT
7512539
$7,34 Unit Price incl. VAT
16
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
17
FUEL LINE; 600 CM
8450040600
Not Available
18
PUMP FUEL 2 OUTLET
2520134
9999999
Not Available
19
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
20
VALVE FUEL SHUTOFF
7052211
Not Available
21
FILTER-FUEL WHITE
2520156
9999999
Not Available
22
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
23
TEE-FUEL
7052035
9999999
Not Available
24
BOLT
7517442
$12,59 Unit Price incl. VAT
25
WASHER
5210748
$7,34 Unit Price incl. VAT
26
BRACE ENGINE MT.
5211881
9999999
Not Available
27
WASHER FLAT(10)
7555915
$6,29 Unit Price incl. VAT
28
ENGINE MOUNT
3110062
9999999
Not Available
29
PLATE SHIM SN70 ENGINE
5211894
9999999
Not Available

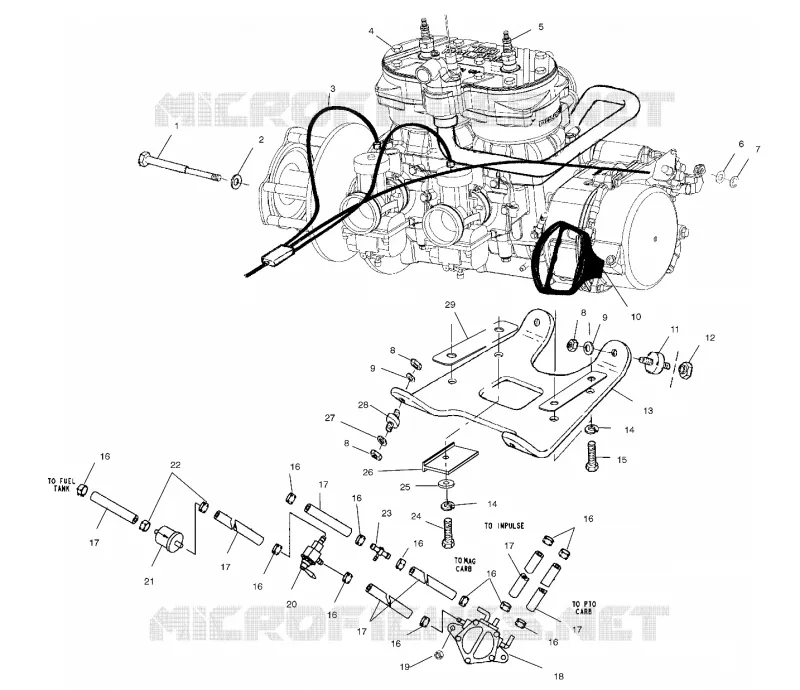

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
