1
Engine displacement
700
2
Year
1999
3
Trim
700 SKS - 099SS7AS
4
Parts Catalog
OIL TANK/AIR BOX
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
EXHAUST SYSTEM
OIL TANK/AIR BOX
1
2
3
4
5
6
7
8
9
10
10
10
12
13
14
15
16
16
17
17
18
19
20
21
22
23
23
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
1
2
3
4
5
6
7
8
9
10
10
10
12
13
14
15
16
16
17
17
18
19
20
21
22
23
23
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
1
TANK;OIL/COOLANT COMBO.
5432749
9999999
Not Available
2
DECAL FUEL SHUT-OFF
7077442
Not Available
3
DECAL-SURGE TANK #FULL COLD#
7078147
Not Available
4
BOLT
7512276
$9,44 Unit Price incl. VAT
5
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
6
NUT
7670096
$3,14 Unit Price incl. VAT
7
OIL LEVER SENSOR
4110134
$141,74 Unit Price incl. VAT
8
CAP OIL VENTED
2511287
1244736
$68,24 Unit Price incl. VAT
9
PRESSURE CAP; 13 LB
2511270
9999999
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
SCREW (10)
7517455
$13,64 Unit Price incl. VAT
13
GROMMET
7052028
$11,54 Unit Price incl. VAT
14
FTTNG STRAIGHT PRESS-IN
7052207
9999999
Not Available
15
CLIP TWIST LOCK
7080745
9999999
Not Available
16
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
17
SCREW(10)
7517615
9999999
Not Available
18
BRKT FUEL PUMP MOUNT-Z
5242680
9999999
Not Available
19
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
20
CABLE CLAMP
7080367
$4,19 Unit Price incl. VAT
21
BRKT;OIL/COOL.TANK;ALUM
5242688
9999999
Not Available
22
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
23
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
24
FUEL LINE; 1/4 ID
84500031525
Not Available
25
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
26
BOOT CARB
5411109
9999999
Not Available
27
FITTING HOSE
7052127
9999999
Not Available
28
CLIP
7670102
$4,19 Unit Price incl. VAT
29
SCREW(10)
7512222
9999999
Not Available
30
WASHER
7552604
$3,14 Unit Price incl. VAT
31
WELL NUT
7541923
$10,49 Unit Price incl. VAT
32
DECAL COOL.SYSTEM [No Longer Available]
7075359
Not Available
33
FOAM AIRBOX CHIMNEY HYB.
5811606
9999999
Not Available
34
MESH-WIREFORMED
5243219
9999999
Not Available
35
RETAINER-TAB
5411075
9999999
Not Available
36
TOP SILEN.INTAKE
5432828
9999999
Not Available
37
Decal Adjustable Driven Clutch
7073820
Not Available
38
DECAL CAUTION
7075351
9999999
Not Available
39
DECAL; GREASING
7073426
9999999
Not Available
40
FOAMAIRBOXTOPINTERNAL
5811564
9999999
Not Available
41
PLATE SILENCER INTAKE
5850134
9999999
Not Available
42
PLATE SILENCER INTAKE VERT.
5850139
9999999
Not Available
43
SILENCER INTAKE DRILLED
5432368
9999999
Not Available
44
TIE-DOWN STRAP
5411129
9999999
Not Available
45
BRKT SIL.MOUNT LOW
5241691
9999999
Not Available

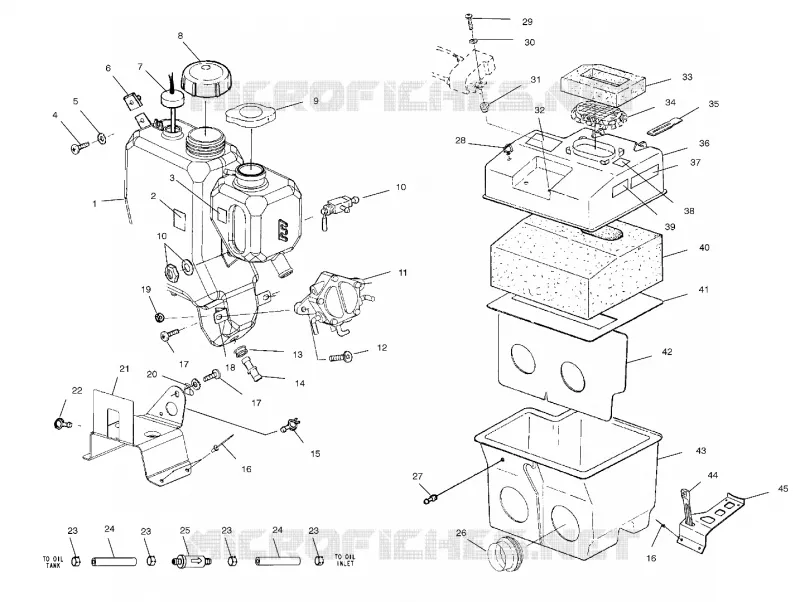

Find the detailed OIL TANK/AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
