Engine displacement
800
2
Year
2012
3
Trim
RZR 4 800 EFI EPS INTL - R12XE7EFX
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNAL COMPONENTS 2
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, PRIMARY CLUTCH

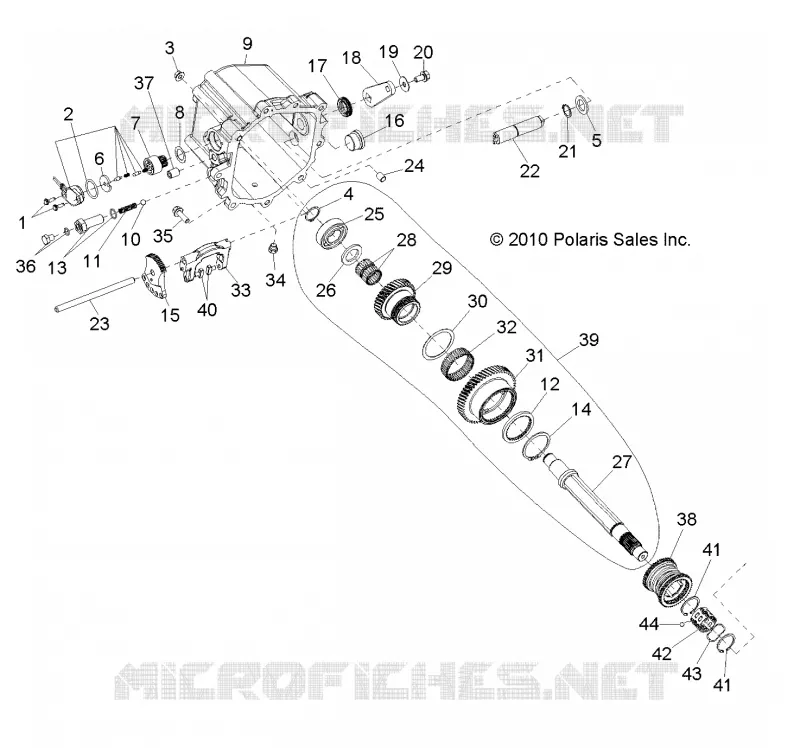

DRIVE TRAIN, MAIN GEARCASE INTERNAL COMPONENTS 2
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
-
TRANSMISSION SUBASSEMBLY
3235360
9999999
Not Available
1
SCR-#10-24X.615 FL(026HM111-1)
3234525
9999999
Not Available
2
SENSOR ASSEMBLY
3234871
9999999
Not Available
3
NUT-FLANGE(026HN107)
3234500
9999999
Not Available
4
RING-RETAINING(012HR128)
3234552
9999999
Not Available
5
WASHER
3234899
9999999
Not Available
6
SPACER(026HS118)
3234523
9999999
Not Available
7
DRUM GEAR SENSOR
3234522
9999999
Not Available
8
WASHER(3652)
3234521
9999999
Not Available
9
SHIFT HOUSING COVER ASSEMBLY
3234890
9999999
Not Available
10
GEARCASE BALL
3234520
9999999
Not Available
11
SPRING-COMP(DIA 5/16X1.56)
3234870
9999999
Not Available
12
RETAINING PLATE
3234874
9999999
Not Available
13
DETENT SLEEVE ASSEMBLY
3234481
9999999
Not Available
14
RETAINING RING
3234879
9999999
Not Available
15
DETENT GEAR PLATE
3235338
9999999
Not Available
16
PLUG-FILL/CHECK
5133736
$47,24 Unit Price incl. VAT
17
OIL SEAL
3234493
9999999
Not Available
18
SHIFT LEVER CABLE
3234492
9999999
Not Available
19
WASHER(3760)
3234491
9999999
Not Available
20
SCR-5/16-18X.620(41302)
3234490
9999999
Not Available
21
RING-RETAINING(7063)
3234494
9999999
Not Available
22
SHIFTER ASSEMBLY
3235284
9999999
Not Available
23
PIVOT PIN
3234914
9999999
Not Available
24
DOWEL BUSHING
3234503
9999999
Not Available
25
BALL BEARING
3235277
9999999
Not Available
26
WASHER-THRUST (026HR132)
3235276
9999999
Not Available
27
CLUTCH INTRMD SHAFT(026KW120X)
3235302
9999999
Not Available
28
NEEDLE ROLLER BEARING 026HD109
3235069
9999999
Not Available
29
CLUTCH GEAR (026GS134)
3235070
9999999
Not Available
30
WASHER-THRUST(026HS129)
3234905
9999999
Not Available
31
CLUTCH GEAR; LOW; 53 TOOTH
3235275
$535,49 Unit Price incl. VAT
32
NEEDLE BEARING
3234536
9999999
Not Available
33
CLUTCH YOKE FINISH
3235339
9999999
Not Available
34
DRAIN PLUG
5133731
$20,99 Unit Price incl. VAT
35
BOLT-HEX FLANGED 026HM103
7518172
9999999
Not Available
36
ASM-SCREW HEX (026KY103X)
3234869
9999999
Not Available
37
SCREW-SET(026HM106)
3234484
9999999
Not Available
38
SHIFT COLLAR
3235072
9999999
Not Available
39
SHIELD
TBD
Not Available
40
CLUTCH YOKE BLADE
3234868
9999999
Not Available
41
RING-RETAINING (026HR117)
3235074
9999999
Not Available
42
BALL BEARING CAGE
3235075
9999999
Not Available
43
WAVE SPRING SINGLE TURN OVRLP
3235076
9999999
Not Available
44
BALL-0.25 DIA
3235077
9999999
Not Available
