Engine displacement
800
2
Year
2012
3
Trim
RZR 4 800 EFI EPS INTL - R12XE7EFX
4
Parts Catalog
DRIVE TRAIN, GEARCASE, DIFFERENTIAL, INTERNAL COMPONENTS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEARCASE, DIFFERENTIAL MOUNTING
by
DRIVE TRAIN, MAIN GEARCASE INTERNAL COMPONENTS 1
DRIVE TRAIN, GEARCASE, DIFFERENTIAL, INTERNAL COMPONENTS
-
1
2
3
4
5
6
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
20
21
22
23
-
AXLE SPOOL
3235361
9999999
Not Available
1
SCR-5/16-18X1.125(026HM117-1)
3234618
9999999
Not Available
2
SCR-5/16-18X.75 FL(026HM103-4)
3234511
9999999
Not Available
3
BRKT-DIFF MNT REAR;RH
5250016
9999999
Not Available
4
BRKT-DIFF MNT REAR;LH
5250329
9999999
Not Available
5
REAR DIFFERENTIAL MOUNT
1332450
9999999
Not Available
6
NUT-FLANGE(026HN107)
3234500
9999999
Not Available
7
HOUSING ASSEMBLY KIT
3235362
9999999
Not Available
8
PLUG-FILL/CHECK
5133736
$47,24 Unit Price incl. VAT
9
PIN LOCK BUSHING
2203507
9999999
Not Available
10
TAPERED BEARING; RLR
3514657
9999999
Not Available
11
DRAIN PLUG
5133731
$20,99 Unit Price incl. VAT
12
SHIM KIT; SPOOL
3234504
9999999
Not Available
13
CLUTCH GEAR
5137196
$278,24 Unit Price incl. VAT
14
SHIFT YOKE
5133759
$272,99 Unit Price incl. VAT
15
PIN-SPRING(500596-15)
3234487
9999999
Not Available
16
COVER ASSEMBLY; REAR
3235359
9999999
Not Available
17
SCR-5/16-18X2.750(026HM103-3)
3234501
9999999
Not Available
18
OIL SHAFT SEAL
3610159
$73,49 Unit Price incl. VAT
19
BOLT-HEX FLANGED 026HM103
7518172
9999999
Not Available
20
BOLT-HEX 41221
7518173
9999999
Not Available
21
LEVER-SHIFT 026SV101
5133760
9999999
Not Available
22
SPRING-LEVER SHIFT 026HE100
7042209
9999999
Not Available
23
RETURN SPRING; SHIFT
7042210
9999999
Not Available
24
PIN-LOCK ASM.
2203503
9999999
Not Available
25
OIL PINION SEAL
3610102
$57,74 Unit Price incl. VAT
26
DOWEL BUSHING
3234503
9999999
Not Available
27
DIFFERENTIAL LOCK SOLENOID
2411634
9999999
Not Available
28
TAPERED ROLLER BEARING
3514435
9999999
Not Available
29
FLANGE HEAD SCREW
3234885
9999999
Not Available
30
CASE-DIFF COVER HALF(026DC108)
3234883
9999999
Not Available
31
WASHER-THRUST PINION 34096
7556347
9999999
Not Available
32
GEAR-PINION MATE DIFF 51451
5134903
9999999
Not Available
33
SIDE GEAR (026GD101)
3234894
9999999
Not Available
34
WASHER-THRUST SIDE GEAR(34095)
3234884
9999999
Not Available
35
CASE-DIFF HALF(026DC106)
3234882
9999999
Not Available
36
PIN-CROSS DIFF 026DP101
5134902
9999999
Not Available

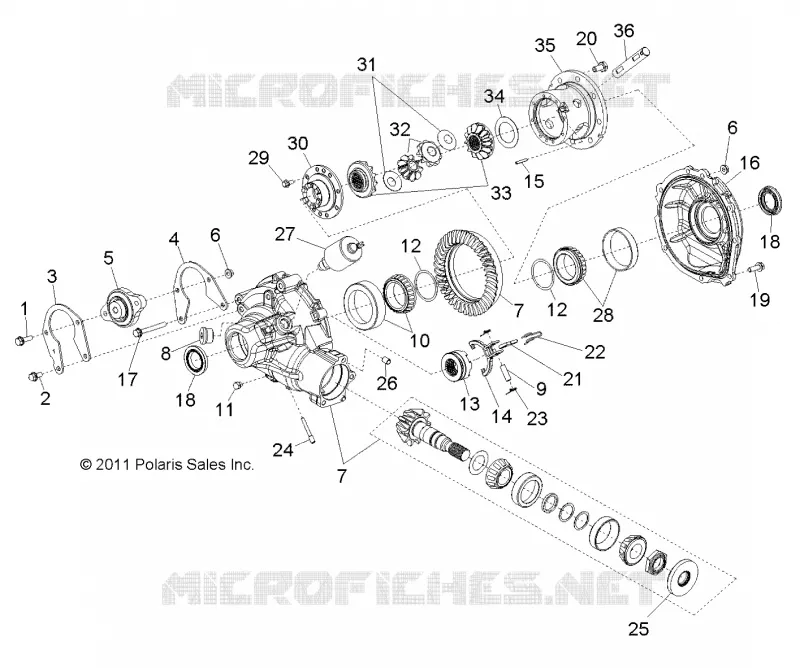

Find the detailed DRIVE TRAIN, GEARCASE, DIFFERENTIAL, INTERNAL COMPONENTS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
