1
Engine displacement
800
2
Year
2012
3
Trim
RZR 4 800 EFI EPS INTL - R12XE7EFX
4
Parts Catalog
TRANSMISSION MOUNTING
5
Parts Diagram
Parts Catalog
THROTTLE PEDAL
by
REFERENCES, TOOL KIT AND OWNERS MANUALS
TRANSMISSION MOUNTING
1
1
2
3
3
3
4
4
5
5
6
6
6
7
8
8
9
10
10
11
12
13
14
13
16
17
18
19
20
21
22
23
24
1
FLANGED SCREW
7515304
9999999
Not Available
2
ENGINE AND TRANSMISSION MOUNTING BRACKET
5250848
9999999
Not Available
3
SCREW
7515415
9999999
Not Available
4
SCREW
7515398
9999999
Not Available
5
REAR DIFFERENTIAL MOUNT
1332450
9999999
Not Available
6
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
7
BOLT-5/16-18X1-1/2 HXFLNG;P-30
7518425
$7,34 Unit Price incl. VAT
8
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
9
WELD-TRANNY MNT FRTYZ
1015537
9999999
Not Available
10
ISOLATOR BASE WELD
1015672
9999999
Not Available
11
ENGINE MOUNT WELD
1015673
9999999
Not Available
12
SCR-5/16-18X3/4 FLGHX 65 LK-Y
7518181
9999999
Not Available
13
BOLT-3/8-16X7/8 HEX FLANGE GR5
7518364
$3,14 Unit Price incl. VAT
14
MOUNT BRACKET WELD REAR MATTE BLACK
1017237458
Not Available
15
BOLT-3/8-16X7/8 HEX FLANGE GR5
7518364
$3,14 Unit Price incl. VAT
16
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
17
FLANGED NUT LOCK(10)
7542459
$3,14 Unit Price incl. VAT
18
NYLOK NUT
7547263
$6,29 Unit Price incl. VAT
19
SCREW
7517696
$10,49 Unit Price incl. VAT
20
CLAMP-HOSE
7081474
$6,29 Unit Price incl. VAT
21
FUEL LINE; 1/4 ID
84500031525
Not Available
22
CRANKCASE MOUNT STUD; LOWER
7518657
$41,99 Unit Price incl. VAT
23
KIT-LONG BLOCK RZR M17
2204398
9990000
Not Available
24
ROSEBUD CLIP
4020149
$12,59 Unit Price incl. VAT

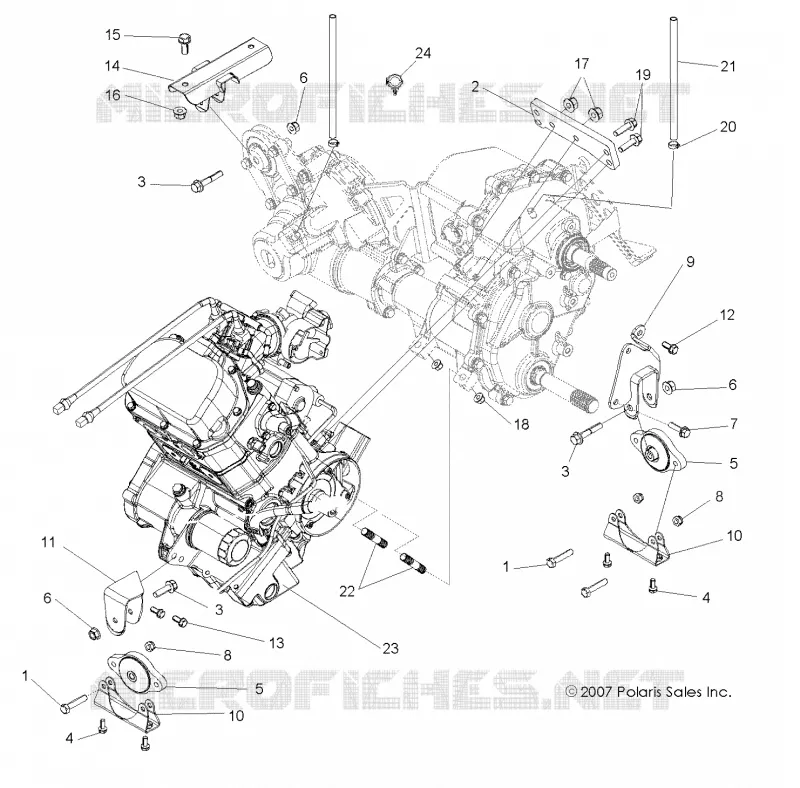

Find the detailed TRANSMISSION MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
