CHASSIS, MAIN FRAME AND SKID PLATE for POLARIS RZR XP 900 EFI - R13JT87AD/AL/9EAK/EAL/EAO/EAT/EAW/EAP from 2013

CHASSIS, CAB FRAME AND SIDE BARS

DRIVE TRAIN, CLUTCH COVER AND DUCTING

CHASSIS, MAIN FRAME AND SKID PLATE

1

MAIN FRAME WELD MATTE BLACK

1018344458

Not Available

2

WELD-BRACE BOLT IN REAR BLK

1018959329

Not Available

3

SKID PLATE; PLASTIC; GLOSS BLACK

5438321070

Not Available

4

BUMPER SUPPORT WELD REAR MATTE BLACK

1017473458

Not Available

5

SKID PLATE WASHER

7556065

$8,39 Unit Price incl. VAT

6

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

6

BOLT-M6X1.0X15 HXFLG TAP/R-OD

7518513

9999999

Not Available

7

FRONT BUMPER SUPPORT; MATTE BLACK

1017471458

Not Available

8

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

9

HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM

7519285

$4,19 Unit Price incl. VAT

10

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

11

BRKT-DOUBLER RR CAB MNT;LH;BLK

5255089458

Not Available

12

BRKT-DOUBLER RR CAB MNT;RH;BLK

5255091458

Not Available

13

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518702

$7,34 Unit Price incl. VAT

14

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

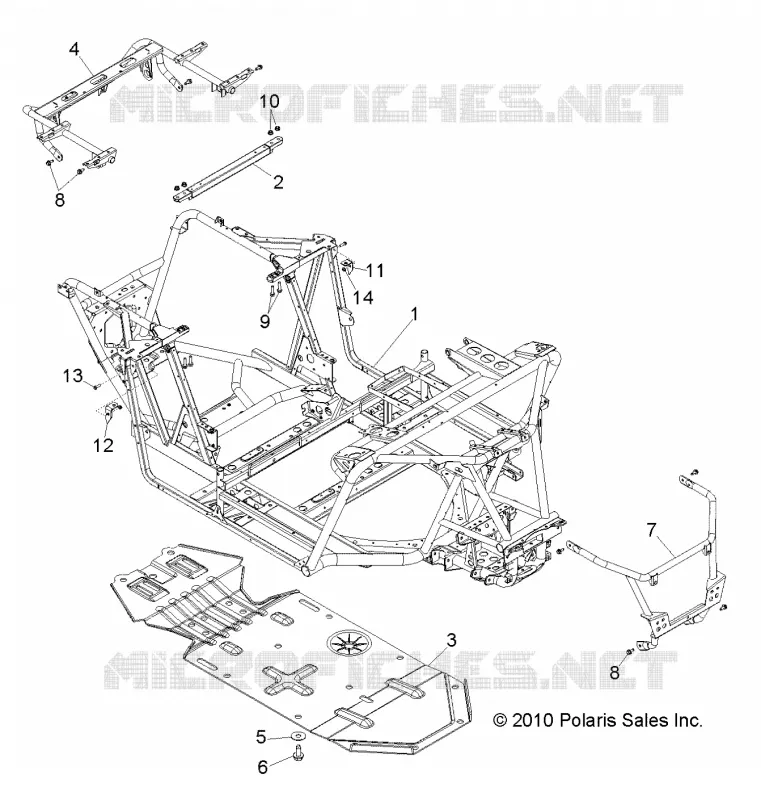

Find the detailed CHASSIS, MAIN FRAME AND SKID PLATE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
