DRIVE TRAIN, MAIN GEARCASE for POLARIS RZR XP 900 EFI - R13JT87AD/AL/9EAK/EAL/EAO/EAT/EAW/EAP from 2013

REFERENCES, TOOL KIT AND OWNERS MANUAL

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, MAIN GEARCASE

1

COMPLETE GEARCASE ASSEMBLY

1333044

9999999

Not Available

2

PLUG; M18 X 1.5

3234755

$52,49 Unit Price incl. VAT

3

SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM

3234756

$57,74 Unit Price incl. VAT

4

HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM

3234898

$17,84 Unit Price incl. VAT

5

SCREW

3235206

$13,64 Unit Price incl. VAT

6

SCREW

3235207

$19,94 Unit Price incl. VAT

7

SOCKET HEAD SCREW; 6 MM X 1 MM X 18 MM

3235332

$7,34 Unit Price incl. VAT

8

HEXFLANGE NUT; NYLON; 8 MM X 1.25 MM

3235210

$14,69 Unit Price incl. VAT

9

PIN; DOWEL; 6 X 20

3234330

$13,64 Unit Price incl. VAT

10

RETAINING RING

3233834

$19,94 Unit Price incl. VAT

11

THRUST WASHER; .446 X .88 X .025

3234642

$19,94 Unit Price incl. VAT

12

COMPRESSION SPRING

3233830

$19,94 Unit Price incl. VAT

13

GEARCASE COVER

3234188

$209,99 Unit Price incl. VAT

14

CASE SUBASSEMBLY; RIGHT

3235444

$965,99 Unit Price incl. VAT

15

CASE SUBASSEMBLY; LEFT; XP 900

3235467

9999999

Not Available

16

SECTOR GEAR; 16 TOOTH

3233839

$68,24 Unit Price incl. VAT

17

SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH

3233832

$68,24 Unit Price incl. VAT

18

ROLLER PAWL

3235452

$68,24 Unit Price incl. VAT

19

DETENT STAR

3235453

9999999

Not Available

20

PARK PLATE

3235456

$73,49 Unit Price incl. VAT

21

BELLCRANK

3235227

$52,49 Unit Price incl. VAT

22

TUBE-VENT 90-1/4 HOSE

3234230

$19,94 Unit Price incl. VAT

23

SHIFT SHAFT

3235238

$68,24 Unit Price incl. VAT

24

BRACKET; MOUNT; REAR

3235239

$73,49 Unit Price incl. VAT

25

REAR MOUNT BRACKET

3235351

$89,24 Unit Price incl. VAT

26

SPACER

3235243

$17,84 Unit Price incl. VAT

27

GEAR POSITION SWITCH PIN

7661999

$220,49 Unit Price incl. VAT

28

O-RING

3233836

$12,59 Unit Price incl. VAT

29

O-RING

3234302

$13,64 Unit Price incl. VAT

30

O-RING

3233828

$12,59 Unit Price incl. VAT

31

SEAL INPUT TPL VITON (560373)

3235466

$57,74 Unit Price incl. VAT

32

VITON TRIPLE LIP SEAL; 40 X 70 X 7

3235052

$57,74 Unit Price incl. VAT

33

TRANSMISSION SPEED SENSOR

4013908

4082135

$204,74 Unit Price incl. VAT

34

SPRING WASHER

3235327

$17,84 Unit Price incl. VAT

35

BRKT-MOUNT(430592)

3235350

$16,79 Unit Price incl. VAT

36

SPRING-SLOTTED PIN;6MM

7043746

$15,74 Unit Price incl. VAT

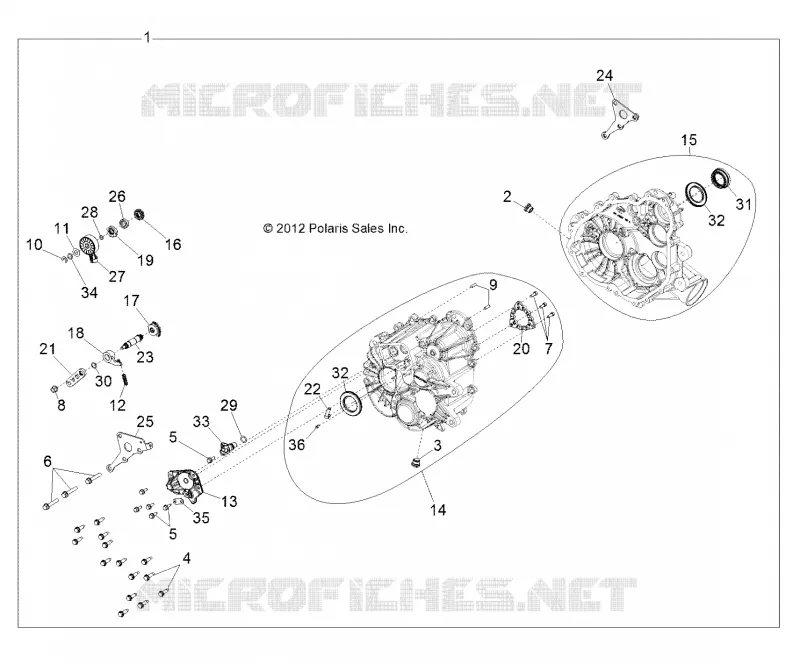

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
