CHASSIS, CAB FRAME AND SIDE BARS for POLARIS RZR XP 900 EFI - R13JT87AD/AL/9EAK/EAL/EAO/EAT/EAW/EAP from 2013

BRAKE LINES AND MASTER CYLINDER

CHASSIS, MAIN FRAME AND SKID PLATE

CHASSIS, CAB FRAME AND SIDE BARS

1

WELD-CAB FRAMEBACKM. BLK

1018251458

Not Available

2

WELD-CAB FRAMEFRONTM BLK

1017476458

Not Available

3

CAB FRAME; BASE; FRONT; RIGHT; MT BLK

5632414458

Not Available

4

CAB FRAME BASE; FRONT; LEFT; MATTE BLACK

5632415458

Not Available

5

TUBE SIDE BAR LEFT MATTE BLACK

5336741458

Not Available

6

TUBE SIDE BAR; RIGHT; MATTE BLACK

5336742458

Not Available

7

HEX SOCKET SCREW; 3/8; 16 X 1 1/4

7517935

$4,19 Unit Price incl. VAT

8

NYLOK NUT

7542451

$2,09 Unit Price incl. VAT

9

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518702

$7,34 Unit Price incl. VAT

10

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

11

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

12

SCREW

7516732

$3,14 Unit Price incl. VAT

13

SCR HEXHD M8X25

7517826

9999999

Not Available

14

SCR-M10X1.5X25 HEX DIN933 8.8

7519308

$9,44 Unit Price incl. VAT

15

NUT-NY INS;M10X1.5;HEX;ZINC;YW

7547385

$2,09 Unit Price incl. VAT

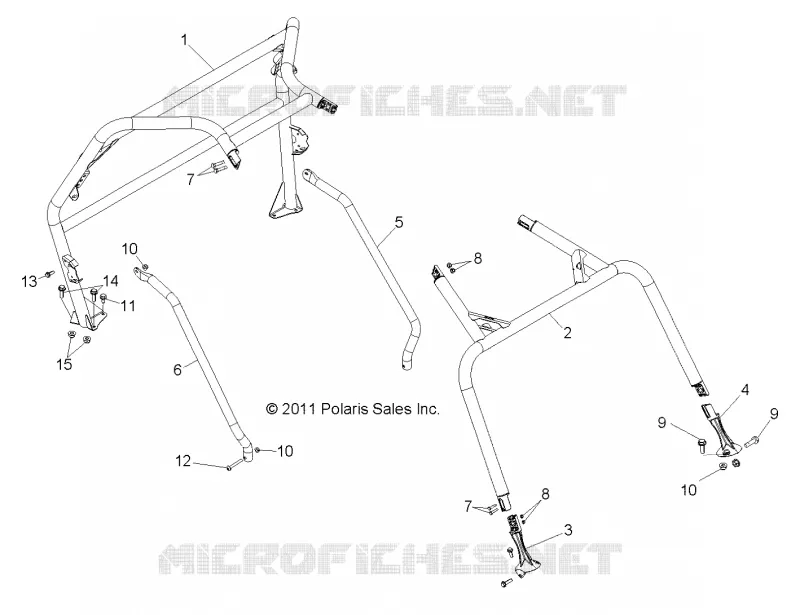

Find the detailed CHASSIS, CAB FRAME AND SIDE BARS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
