1
Engine displacement
600
2
Year
1998
3
Trim
600 XCR - 0985677
4
Parts Catalog

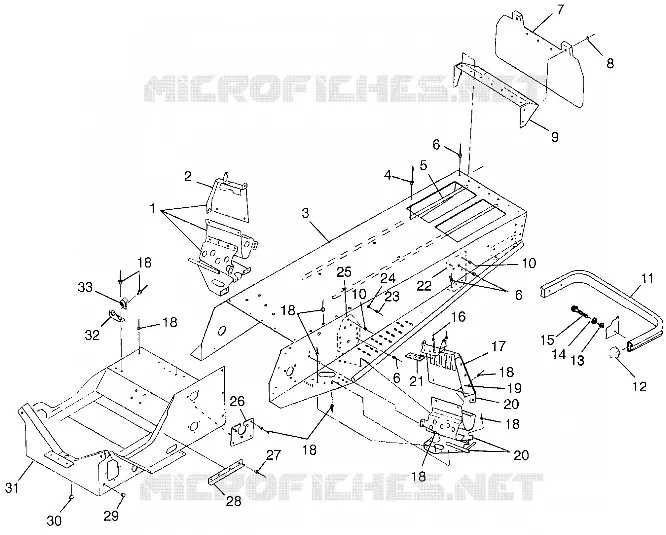

TUNNEL 600 XCR 0985677 (4943164316A005)
5
Parts Diagram
Parts Catalog
by
HOOD 600 XCR 0985677 (4943164316A011)
TUNNEL 600 XCR 0985677 (4943164316A005)
1
2
3
4
5
6
6
6
7
8
9
10
10
11
11
11
11
12
13
14
15
16
17
18
18
18
18
18
18
18
19
19
19
19
20
20
21
22
22
22
22
23
24
25
25
25
25
26
27
28
29
30
31
32
33
1
FOOTREST RH
1012281
Not Available
2
MOUNTRHCONSOLE
5240864067
Not Available
3
TUNNEL ASM X10 Substituted by 1012554-067 (Incl. 9 15 24 26)
1012554
Not Available
4
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
5
STRIP-WEAR
5510130
9999999
Not Available
6
RIVET SEMI-TUBE (10)
7661840
9999999
Not Available
7
FLAP;SNOW;(XTRA-10)
5432149
9999999
Not Available
8
RIVET
7621418
$2,09 Unit Price incl. VAT
9
PANEL TUNNELBACK
5241053067
Not Available
10
RIVET SEMI-TUBE (50)
7661841
9999999
Not Available
11
BUMPER SIDESTRIP VLT C
5811264198
Not Available
11
BUMPER REAR BLACK
2670169
9999999
Not Available
12
CAP BUMPER
5431995070
Not Available
13
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
14
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
15
SCREW
7515159
$9,44 Unit Price incl. VAT
16
RIVET(10)
7661850
9999999
Not Available
17
MOUNT LH CONSOLE
5240863067
Not Available
18
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
19
BRKT RH CORNERBRACE
5241321067
Not Available
19
BRKT LH CORNERBRACE
5241320067
Not Available
20
FOOTREST LH
1012280
Not Available
21
PLATE CLUTCH GUARD MT.
1012441
Not Available
22
PAD LH R.SUSP.
5241268067
Not Available
22
PAD RH R.SUSP.
5241269067
Not Available
23
RIVET(10)
7621222
9999999
Not Available
24
SNAP-MALE
7080227
9999999
Not Available
25
PAD RH FR.SUSP.MTG.
5241304067
Not Available
25
PAD LH FR.SUSP.MTG.
5241303067
Not Available
26
PLATE BRG.SUPPORT B HD.
5211806067
Not Available
27
RIVET
7621452
9999999
Not Available
28
GUARD ADAPTER GUIDE
5222857
9999999
Not Available
29
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
30
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
31
BULKHEAD CRC BLACK
1012616067
Not Available
32
ROPE GUIDE BRACKET; MEDIUM GLOSS BLACK
5222687067
Not Available
33
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT

Find the detailed TUNNEL 600 XCR 0985677 (4943164316A005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
