1
Engine displacement
600
2
Year
1998
3
Trim
600 XCR - 0985677
4
Parts Catalog
CONTROLS 600 XCR 0985677 (4943164316B003)
5
Parts Diagram
Parts Catalog
STEERING
by
BRAKE 600 XCR 0985677 (4943164316B004)
CONTROLS 600 XCR 0985677 (4943164316B003)
1
2
3
3
3
3
4
5
6
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
2
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
3
LEVER ASMW/WARMER
2010094
9999999
Not Available
3
LEVER-THROTTLE
5430638
9999999
Not Available
4
THROTTLE/BRAKE; BLOCK
5431592
$73,49 Unit Price incl. VAT
5
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available
6
WASHER (10)
7555727
9999999
Not Available
7
SCREW
7511848
$7,34 Unit Price incl. VAT
8
SCREW SET
7512465
$7,34 Unit Price incl. VAT
9
WASHER
7555730
$7,34 Unit Price incl. VAT
10
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
11
SCREW
7511858
$7,34 Unit Price incl. VAT
12
WIRE HOLDER
5432261
$47,24 Unit Price incl. VAT
13
SWITCH; DIMMER
4110136
9999999
Not Available
14
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
15
MASTER CYL.ASM3/4"
2050070
9999999
Not Available
16
SCREW W/WASHER
7512050
9999999
Not Available
17
COVER MASTER CYL.
5630338
9999999
Not Available
18
MASTER CYLINDER GASKET
5410527
9999999
Not Available
19
BOLT BRAKE LEVER
7512287
9999999
Not Available
20
SPRING PK.BRAKE
7041229
9999999
Not Available
21
LEVER PARK.BRAKE
5240809
9999999
Not Available
22
BUSHING PK.BRAKE LEVER
5020670
9999999
Not Available
23
SCREW
7511866
$9,44 Unit Price incl. VAT
24
TAG-PARK BRAKE WARNING [S99CM][FROM 5/18/2018]
5431389
Not Available
25
STRAP PARK.BRAKE TAG
7080447
9999999
Not Available
26
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
27
LEVER BRAKE
5630409
9999999
Not Available
28
O-RING
5410163
$3,14 Unit Price incl. VAT
29
PISTON MASTER CYL.
5020679
9999999
Not Available
30
U-PACKING SEAL
5410164
9999999
Not Available
31
SPRING; MASTERCYL.
7041311
9999999
Not Available
32
BUSHING BRAKE LEVER
5332931
9999999
Not Available
33
WASHER
7555708
9999999
Not Available
34
CLAMP MASTER CYL.
5630342
9999999
Not Available
35
BOLT SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
36
MASTER CYLINDER HOUSING
5130955
9999999
Not Available
37
BAFFLE MASTER CYL.
1930673
9999999
Not Available
38
WASHER; BAFFLE
1930662
9999999
Not Available

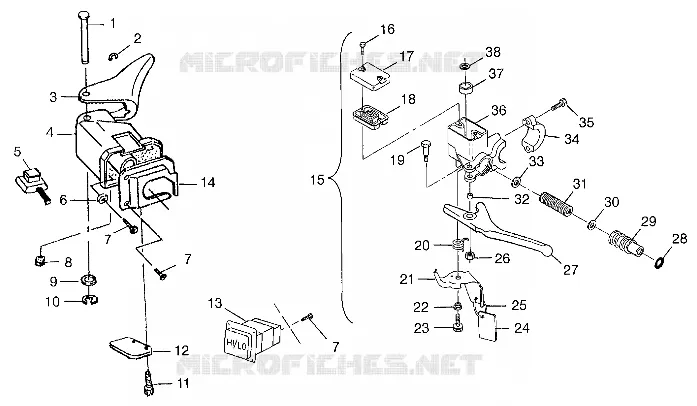

Find the detailed CONTROLS 600 XCR 0985677 (4943164316B003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
