1
Engine displacement
600
2
Year
1998
3
Trim
600 XCR - 0985677
4
Parts Catalog
FRONT SUSPENSION AND SKI 600 XCR 0985677 (4943164316B005)
5
Parts Diagram
Parts Catalog
BRAKE 600 XCR 0985677 (4943164316B004)
by
RAIL MOUNTING (SUSPENSION) 600 XCR 0985677 (4943164316B011)
FRONT SUSPENSION AND SKI 600 XCR 0985677 (4943164316B005)
1
2
2
3
4
5
6
6
7
8
9
10
10
10
11
11
11
11
12
13
13
14
15
16
17
17
17
17
18
19
19
19
19
20
21
22
23
24
25
26
27
27
27
28
29
30
30
31
32
33
33
34
35
36
37
38
39
40
41
41
41
42
43
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
1
BRACE FR.BULKH. BLK Substituted by 5242112-067
5241641067
Not Available
2
STRAP SPACER BOTTOM
5211345
9999999
Not Available
3
NUT FLEXOC;
7542703
9999999
Not Available
4
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
5
BOLT
7512551
9999999
Not Available
6
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
7
BAR SWAY BLK
5224742067
Not Available
8
BUSHING SWAYBAR 5/8
5432885
9999999
Not Available
9
RIVET (50)
7621477
9999999
Not Available
10
NUT; FLEXLOC B
7542456
9999999
Not Available
11
ARM RH STRG BLK.
5241661067
Not Available
11
ARM LH STRG BLK.
5241660067
Not Available
12
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
13
WASHER
7555721
$2,09 Unit Price incl. VAT
14
BUSHING TUBE
5010310
9999999
Not Available
15
RUBBER PIVOT
5410872
9999999
Not Available
16
BOLT
7512557
9999999
Not Available
17
ARM TRLG RH Substituted by 2201471 (Incl. 15 16)
1822452
Not Available
17
ARM TRLG LH
1822451
9999999
Not Available
18
SWAYBAR SLIDE; 5/8
5432331
9999999
Not Available
19
STOP RH STRG BLK.
5241778067
Not Available
19
STOP LH STRG BLK
5241777067
Not Available
20
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
21
BUSHING
7556509
$3,14 Unit Price incl. VAT
22
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
23
SPINDLE SHAFT; MEDIUM GLOSS BLACK
6230102067
Not Available
24
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
25
SKI ASMCOMP(PLASTIC)
1820506
9999999
Not Available
26
SKAG CARBIDE 3"OF120 DEGREE
2871815
9999999
Not Available
27
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
28
SCREW
7512596
9999999
Not Available
29
BOLT
7515514
$13,64 Unit Price incl. VAT
30
WASHER
7555832
$4,19 Unit Price incl. VAT
31
BOLT
7515307
$7,34 Unit Price incl. VAT
32
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
33
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
34
TOE PLASTIC SKI
5432209
5434165-070
$73,49 Unit Price incl. VAT
35
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
36
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
37
STOP RUBBER
5411094
5412018
$47,24 Unit Price incl. VAT
38
SUPPORT SKI RUBBER MEDIUM GLOSS BLACK
5241912067
Not Available
39
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
40
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
41
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
42
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
43
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
44
ROD RAD UP.
1822457067
Not Available
45
ROD RAD LOW.
1822458067
Not Available
46
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
47
ROD END;RH
7060156
7061071
$99,74 Unit Price incl. VAT
48
BOLT
7512678
$36,74 Unit Price incl. VAT
49
RIVET
7621452
9999999
Not Available
50
SUPPORT PANBRAKE LOW.
5240699067
Not Available
51
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
52
NUT FLEXLOCK
7542503
9999999
Not Available
53
BOLT(10)
7515515
9999999
Not Available
54
ROD END; RH
7060155
9999999
Not Available
55
NUT JAM(10)
7542520
9999999
Not Available
56
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
57
SPRING; FRONT; MEDIUM GLOSS BLACK
7041575067
Not Available

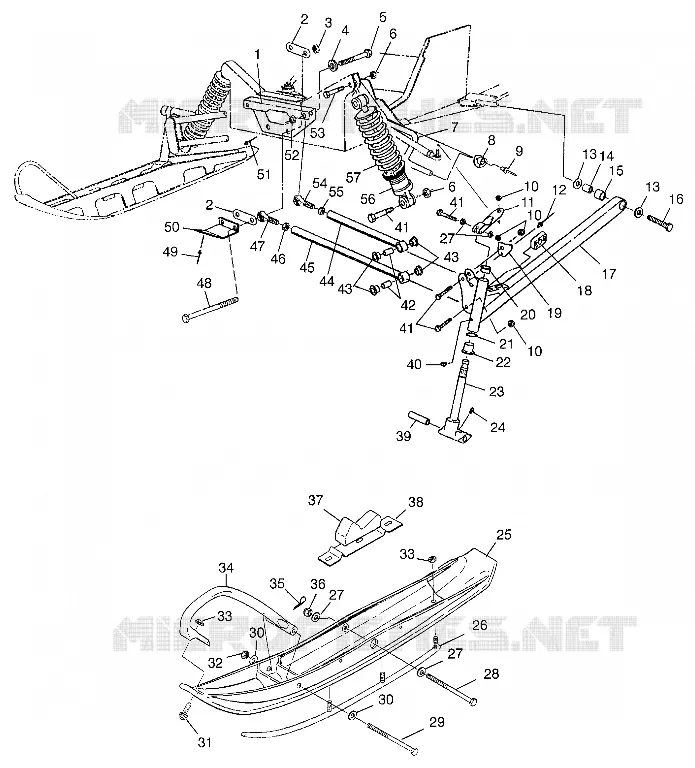

Find the detailed FRONT SUSPENSION AND SKI 600 XCR 0985677 (4943164316B005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
