Parts Catalog
DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 12/02/08 AND AFTER)
5

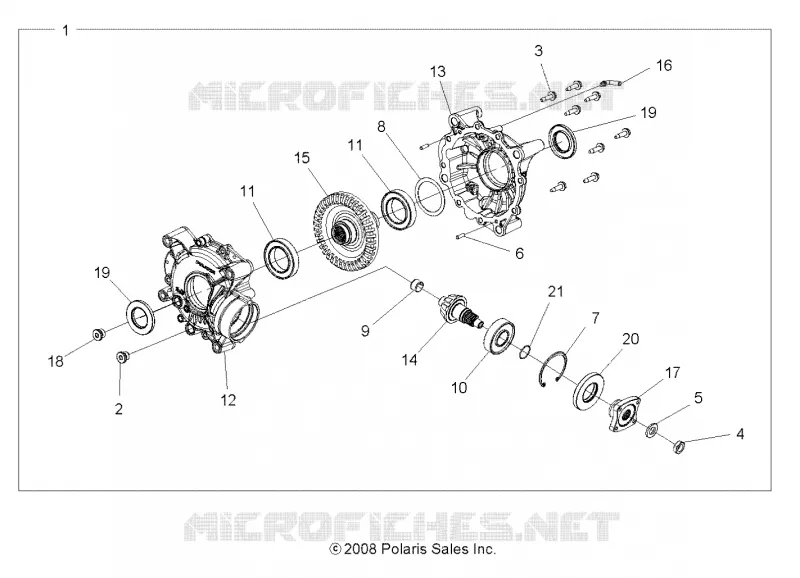

Parts Diagram
Parts Catalog
WINCH
by
ENGINE, AIR INTAKE
DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 12/02/08 AND AFTER)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
21
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
ASM-GEARCASE REAR
1332752
2204462
$2 383,49 Unit Price incl. VAT
2
SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM
3234756
$57,74 Unit Price incl. VAT
3
HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM
3234898
$17,84 Unit Price incl. VAT
4
NUT-HEX M16 X 2.0
3234776
$19,94 Unit Price incl. VAT
5
LOCKING WASHER; 17 X 30
3234777
$78,74 Unit Price incl. VAT
6
PIN; DOWEL; 6 X 20
3234330
$13,64 Unit Price incl. VAT
7
RING-RETAINING BEVELED INTERNA
3234158
$41,99 Unit Price incl. VAT
8
SHIM; 3.1 X 2.5
3233581
$73,49 Unit Price incl. VAT
9
NEEDLE BEARING; .75 X 1 X .625
3234799
$27,29 Unit Price incl. VAT
10
BALL BEARING
3233714
9999999
Not Available
11
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
12
CASE-MAIN MACHINED
3234791
9999999
Not Available
13
KIT-CASE LH
3234796
9999999
Not Available
14
STRAIGHT BEVEL PINION SHAFT; 10 TOOTH
3234798
$309,74 Unit Price incl. VAT
15
GEAR-37T STRAIGHT BEVEL
3234792
2204462
$2 383,49 Unit Price incl. VAT
16
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
17
COUPLER
3234782
$188,99 Unit Price incl. VAT
18
PLUG; M18 X 1.5
3234755
$52,49 Unit Price incl. VAT
19
TRIPLE LIP SEAL; 40 X 70 X 7
3234793
$57,74 Unit Price incl. VAT
20
TRIPLE LIP SEAL 40 X 70 X 7
3234794
9999999
Not Available
21
O-RING 2-023 NITRIL
3234785
$17,84 Unit Price incl. VAT
