1
Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP EPS 850 - A09ZX85/8X ALL OPTIONS
4
Parts Catalog
IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
HEADLIGHTS
by
BALANCE SHAFT
IGNITION SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
1
TUBING-NYLON 5MM X 144MM
8360072
8360209
$27,29 Unit Price incl. VAT
2
FLYWHEEL-450W 165MM W/ENCODRNG
4011428
2205188
$902,99 Unit Price incl. VAT
3
COUPLER-WATERPUMP FLYWHEEL
5136307
$52,49 Unit Price incl. VAT
4
BOLT-WATERPUMP DRIVE LH
5136389
9999999
Not Available
5
SCR-M6X1.0X30 HX/SOC/CP-Y/D
7518544
7527860
$5,24 Unit Price incl. VAT
6
STATOR-450W W/GROMMET
4011427
9999999
Not Available
7
SCR-M6X1.0X10 SHCS
7518765
7527859
$9,44 Unit Price incl. VAT
8
RETAINER-STATOR WIRE
5250018
9999999
Not Available
9
GASKET-STATOR COVER
5813267
5813680
$73,49 Unit Price incl. VAT
10
O-RING
5411564
9999999
Not Available
11
PLUG HOLE TMNG 3/4-16 NYLON
5433820
9999999
Not Available
12
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
13
SPARKPLUG MAG WIRE; 356 MM
4012343
$115,49 Unit Price incl. VAT
14
SPARKPLUG WIRE; 406 MM; PTO
4012344
$120,74 Unit Price incl. VAT
15
COIL-EFI
4010425
2876049
$451,49 Unit Price incl. VAT
16
SCR-10X1.00 TX PN HI/LO-Y
7518922
$6,29 Unit Price incl. VAT
17
FITTING
7052145
$17,84 Unit Price incl. VAT
18
SPARKPLUG-12MM CHAMPION REA8MCL(4)
3021732
3022225
$10,80 Unit Price incl. VAT
18
SPARKPLUG-12MM CHAMPION(REA6MC
3022111
3022225
$10,80 Unit Price incl. VAT

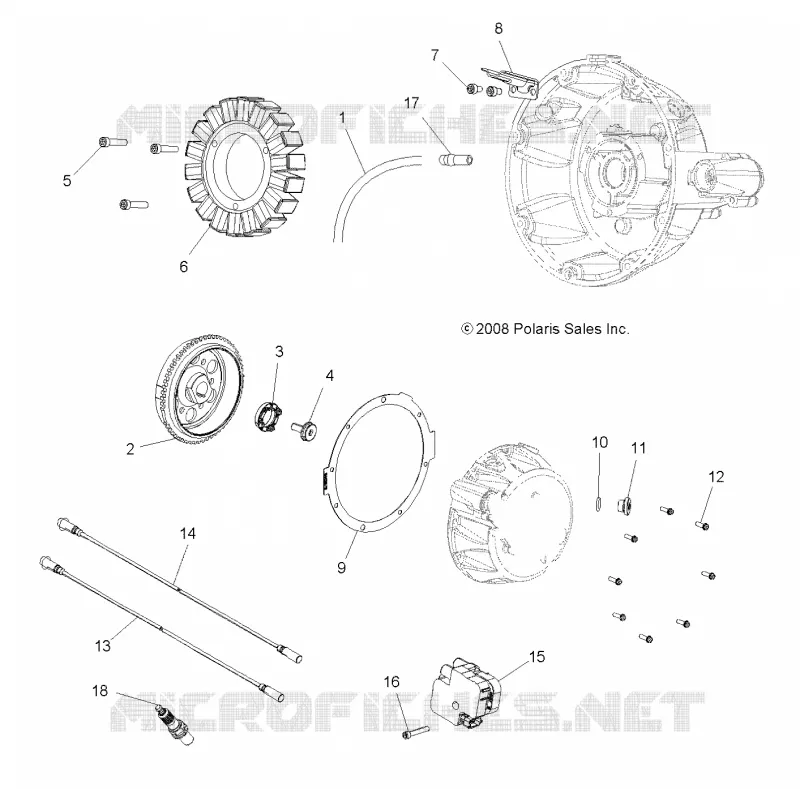

Find the detailed IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
