Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP EPS 850 - A09ZX85/8X ALL OPTIONS
4
Parts Catalog
COOLING SYSTEM
5

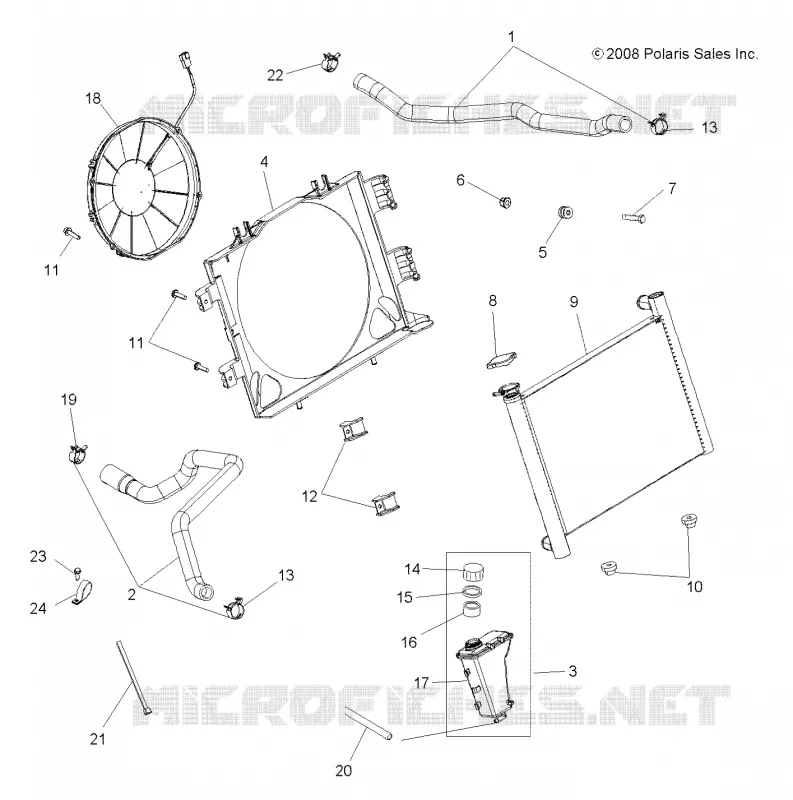

Parts Diagram
Parts Catalog
COOLING BYPASS
by
EXHAUST
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
1
ASM-HOSE RADIATOR ENG OUT 25MM
1240407
9990000
Not Available
2
ASM-HOSE-RADIATOR ENG IN 25MM
1240449
5414391
$104,99 Unit Price incl. VAT
3
BOTTLE ASSEMBLY; COOLANT RECOVERY
1240406
$141,74 Unit Price incl. VAT
4
SPORTSMAN XP RADIATOR SHROUD
5437627
2415279
$467,24 Unit Price incl. VAT
5
GROMMET AND INSERT ASSEMBLY
5413509
$30,23 Unit Price incl. VAT
6
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
7
BOLT-M6X1.0X30 HXHD FLG BLK
7518530
$7,34 Unit Price incl. VAT
8
PRESSURE CAP; 13 PSI
1240466
$104,99 Unit Price incl. VAT
9
RADIATOR
1240404
$871,49 Unit Price incl. VAT
10
RADIATOR MOUNT GROMMET; LOWER
5413510
$30,23 Unit Price incl. VAT
11
SCREW-M6X15 THRD FRM
7518918
9999999
Not Available
12
CLIP-SHROUD FAN
5437628
9999999
Not Available
13
CLAMP-HOSE
7081520
9999999
Not Available
14
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
15
GASKET
5810279
$4,19 Unit Price incl. VAT
16
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
17
BOTTLE-COOLANT RECOVERY
5437257
1240406
$141,74 Unit Price incl. VAT
18
RADIATOR FAN SHROUD ASM SPORTSMAN XP
2411578
2415279
$467,24 Unit Price incl. VAT
19
CLAMP-HOSE
7081521
7081192
$14,69 Unit Price incl. VAT
20
COOLANT LINE; 27 CM
845012827
Not Available
21
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
22
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
23
BOLT-M6X1.0X15 HXFLG TAP/R-OD
7518513
9999999
Not Available
24
CLAMP-HOSE 1.312 VINYL COATED
7080851
9999999
Not Available
