COOLING SYSTEM 600 XCR 0941667 (4927092709014A)
5
Parts Diagram
Parts Catalog
TORSION BAR ASSEMBLY 600 XCR 0941667 (4927092709013A)
by
DRIVE TRAIN ASSEMBLY 600 XCR 0941667 (4927092709019A)
COOLING SYSTEM 600 XCR 0941667 (4927092709014A)
1
2
2
3
4
5
6
7
8
8
9
10
10
10
10
11
11
11
12
12
13
14
14
15
16
17
18
19
19
20
20
20
21
22
23
23
23
24
24
24
24
24
24
25
26
27
28
29
30
1
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
2
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
3
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
4
PLUG
5431096
$3,66 Unit Price incl. VAT
5
GASKET
5810279
$4,19 Unit Price incl. VAT
6
BOLT
7512240
9999999
Not Available
7
BOTTLE O FLOW W/FITTING
5431733
9999999
Not Available
8
RIVET
7661637
$2,09 Unit Price incl. VAT
9
EXCHANGER COOL.CTR.
2511239
9999999
Not Available
10
CLAMP WORM DRIVE
7080547
9999999
Not Available
11
CLAMP; HOSE
7080498
9999999
Not Available
12
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
13
EXT. LH COOLING Substituted by 2511257
2511228
Not Available
14
GUARD COOL.EXT.
5222863
9999999
Not Available
15
HOSE-CROSSOVER
5410350
9999999
Not Available
16
HOSE CENTER
5410673
9999999
Not Available
17
BRACKET
5223985
Not Available
18
HOSE-CROSSOVER
5410324
9999999
Not Available
19
HOSE RETAINER SPRING
7041079
9999999
Not Available
20
TUBING CONVOL 1 X2.5
5521242
9999999
Not Available
21
HOSE COOLER/ENG.
5410862
Not Available
22
HOSE BRK.COOL.SIDE
5410705
9999999
Not Available
23
FUEL LINE; 1/4 ID
84500031525
Not Available
24
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
25
CHECK VALVE
7052038
$20,99 Unit Price incl. VAT
26
FILTER WATER LINE
2530010
9999999
Not Available
27
GROMMET RUBBER
5410021
9999999
Not Available
28
EXT. RH.COOLING.
2511229
9999999
Not Available
29
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
30
CABLE TIE
7080138
$5,24 Unit Price incl. VAT

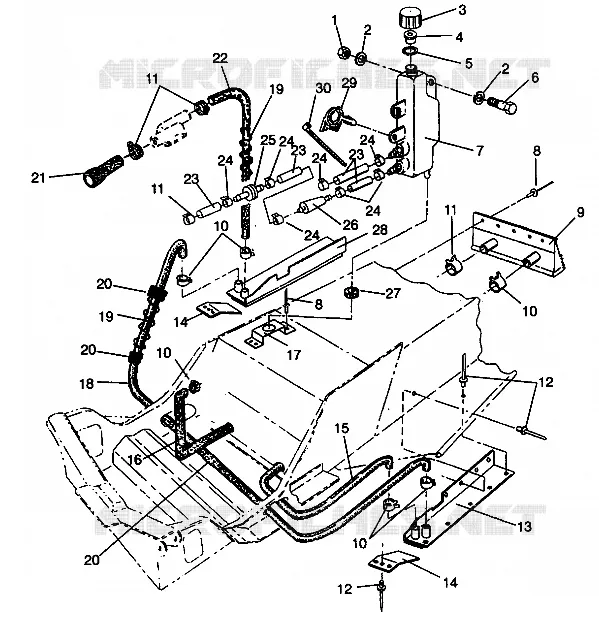

Find the detailed COOLING SYSTEM 600 XCR 0941667 (4927092709014A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
