1
Engine displacement
600
2
Year
1994
3
Trim
600 XCR - 0941667
4
Parts Catalog
FRONT TORQUE ARM 600 XCR 0941667 (4927092709021A)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY 600 XCR 0941667 (4927092709020A)
by
REAR TORQUE ARM 600 XCR 0941667 (4927092709022A)
FRONT TORQUE ARM 600 XCR 0941667 (4927092709021A)
1
1
2
3
4
5
6
7
8
9
9
9
10
10
11
12
13
14
14
14
14
15
16
16
17
18
19
20
21
22
23
24
24
25
26
1
BOLT NYLOC BLACK
7515493
9999999
Not Available
2
SHAFT MOUNTING
5010149
9999999
Not Available
3
ARM FR.TORQUE BLK.
1540829067
Not Available
4
SPRING RETAINER; SLOTTED
5020618
$36,74 Unit Price incl. VAT
5
SHOCK GAS MIDDLE (Incl. 1-21)
7041344
Not Available
6
SPRING SHIELD
5430671
9999999
Not Available
7
COMPRESSION SPRING MEDIUM GLOSS BLACK
7041253067
Not Available
8
RETAINER; SPRING BODY
5020617
9999999
Not Available
9
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
10
SCREW
7515415
9999999
Not Available
11
EYE BOLT
7010050
9999999
Not Available
12
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
13
PIVOT TUBE BUSHING
5020561
9999999
Not Available
14
BUSHING
7556301
$6,29 Unit Price incl. VAT
15
NUT FLEXLOC
7542402
9999999
Not Available
16
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
17
SHOCK ARM WELDBLK.
1540791067
Not Available
18
BOLT
7515525
9999999
Not Available
19
SPACER
5333028
9999999
Not Available
20
BOLT
7515438
$9,44 Unit Price incl. VAT
21
SPACER OUTER
5332784
9999999
Not Available
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
24
WASHER
7555716
$3,14 Unit Price incl. VAT
25
BOLT
7515307
$7,34 Unit Price incl. VAT
26
STRAP LIMITER FR.
5410840
9999999
Not Available

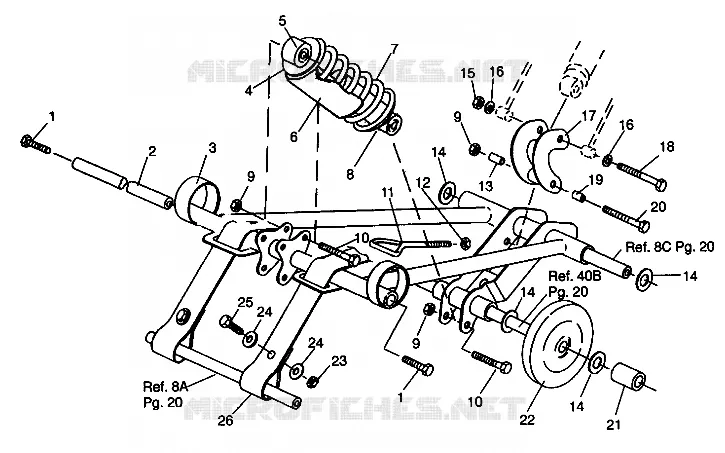

Find the detailed FRONT TORQUE ARM 600 XCR 0941667 (4927092709021A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
