1
Engine displacement
600
2
Year
1994
3
Trim
600 XCR - 0941667
4
Parts Catalog

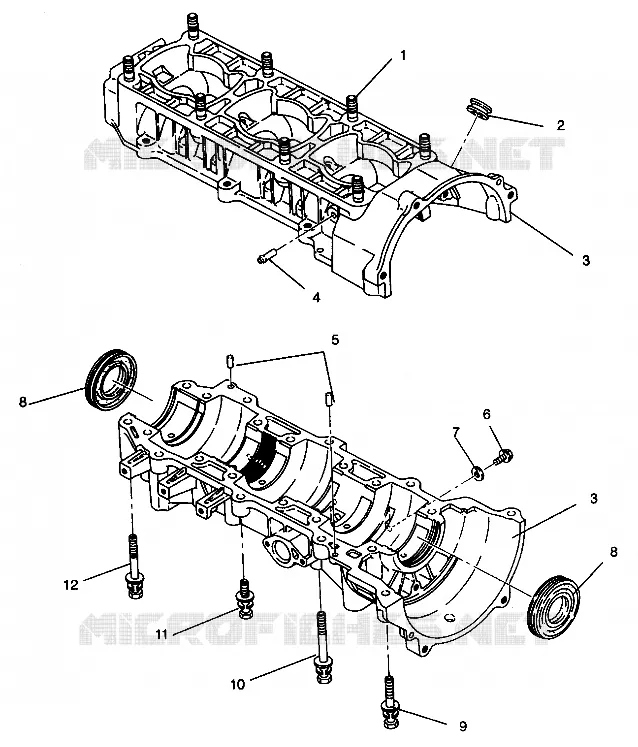

CRANKCASE ASSEMBLY 600 XCR 0941667 (4927092709033A)
5
Parts Diagram
Parts Catalog
OIL TANK/AIR BOX 600 XCR 0941667 (4927092709027A)
by
CYLINDER 600 XCR 0941667 (4927092709034A)
CRANKCASE ASSEMBLY 600 XCR 0941667 (4927092709033A)
1
2
3
3
4
5
6
7
8
8
9
10
11
12
1
STUD
3080745
9999999
Not Available
2
GROMMET
3082875
9999999
Not Available
3
CRANKCASE ASM.
3084669
9999999
Not Available
4
PIPE PULSE
3083798
7052145
$17,84 Unit Price incl. VAT
5
PIN; DOWEL
3080103
9999999
Not Available
6
BOLT; FLANGE
3083568
7520710
$7,34 Unit Price incl. VAT
7
GASKET; ALUM;
3082758
7555998
$2,09 Unit Price incl. VAT
8
OIL SEAL
3083045
9999999
Not Available
9
BOLT AND WASHER ASSY.
3082097
9999999
Not Available
10
BOLT&WASHER ASM.
3084670
7520777
$7,34 Unit Price incl. VAT
11
BOLT&WASHER ASM.
3084225
7520778
$6,29 Unit Price incl. VAT
12
BOLT&WASHER ASM.
3084671
Not Available

Find the detailed CRANKCASE ASSEMBLY 600 XCR 0941667 (4927092709033A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
