REAR SUSPENSION AND TRACK for POLARIS 600 WIDETRAK IQ from 2016

REAR SUSPENSION AND TRACK

1

PIVOT SHAFT; .750 X 13.235

5132239

$115,49 Unit Price incl. VAT

2

WASHER FLAT

7555976

$7,34 Unit Price incl. VAT

3

TUBE OUTER SPACER

5333012

$20,99 Unit Price incl. VAT

4

BUSHING

7556301

$6,29 Unit Price incl. VAT

5

WELD-PIVOT ARM;BLK

1542462329

Not Available

6

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

7

WELD-SHOCK PIVOT ARM

1542464329

Not Available

8

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

9

BUSHING

7555918

$3,14 Unit Price incl. VAT

10

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

10

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

10

ASM-WHEEL SCRL 7.25 6004 BRSLV

1590388244

Not Available

11

SPACER IDLER

5333523

9999999

Not Available

12

SHAFT IDLER

5020879

9999999

Not Available

13

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

14

BOLT 3/8-16X1.25(10)

7517731

$2,09 Unit Price incl. VAT

15

SCR-3/8-16X1.50-HX/CP-GR5-P80Y

7518005

$5,76 Unit Price incl. VAT

16

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

16

ASSEMBLED WHEEL; GLOSS BLACK

1590388070

Not Available

16

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

17

PIVOT ARM WELD; REAR; BLACK

1542463329

Not Available

18

SHAFT SPANNER

5020720

9999999

Not Available

19

BEARING

3514303

$20,99 Unit Price incl. VAT

19

ASM-WHEEL 5.62 PLAIN W/INSERT

1590467

9999999

Not Available

19

RETAINING RING

7718407

$9,44 Unit Price incl. VAT

19

WHEEL INSERT

5431531

$19,94 Unit Price incl. VAT

20

TRACK 20 IN X 156 IN X 1.25 IN

5413426

9999999

Not Available

21

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

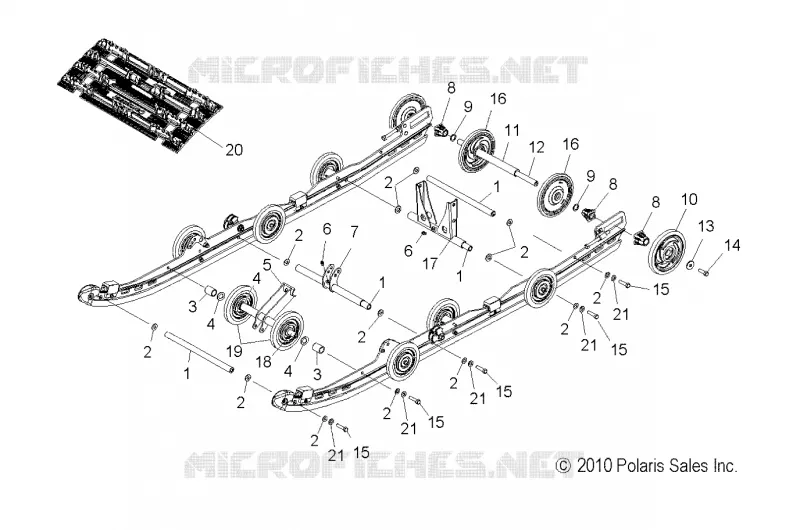

Find the detailed REAR SUSPENSION AND TRACK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
