ENGINE, MOUNTING for POLARIS 600 WIDETRAK IQ from 2016

ENGINE, MOUNTING

1

KIT-SHORT BLOCK 600 WIDETRAK

2205644

9999999

Not Available

2

STOP-TORQUE COURSE 3/8-16 1.50

3021354

$47,24 Unit Price incl. VAT

3

NUT HEX

7542414

$9,44 Unit Price incl. VAT

4

WELD-TORQUE STOP

1016938

9999999

Not Available

5

SCR-3/8-16X1-P30-SPEC-Y

7517854

$10,49 Unit Price incl. VAT

6

SUPPORTTORQUE STOP/ENGINE MOUNT

5253089

9999999

Not Available

7

WELD-NUT PLATE; REAR

1015202

9999999

Not Available

8

RIVET

7661637

$2,09 Unit Price incl. VAT

9

ISOLATOR RUBBER

3021717

9999999

Not Available

10

ENGINE MOUNT STRAP; LEFT; SDI

5135856

$157,49 Unit Price incl. VAT

11

HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM

7518644

$9,44 Unit Price incl. VAT

12

ENGINE MOUNT; BOTTOM; RUBBER

5411686

9999999

Not Available

13

ENGINE MOUNT; TOP; RUBBER

5411685

9999999

Not Available

14

WASHER FLAT(10)

7555915

$6,29 Unit Price incl. VAT

15

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

16

NYLOK NUT

7542451

$2,09 Unit Price incl. VAT

17

ENGINE STRAP; RIGHT; MACHINED

5135326

$157,49 Unit Price incl. VAT

18

BOLT-7/16-14X2.5HXCP GR5-Y;SPT

7519262

$18,89 Unit Price incl. VAT

19

SUPPORT-ENG MNT RR;MAG

5250173

9999999

Not Available

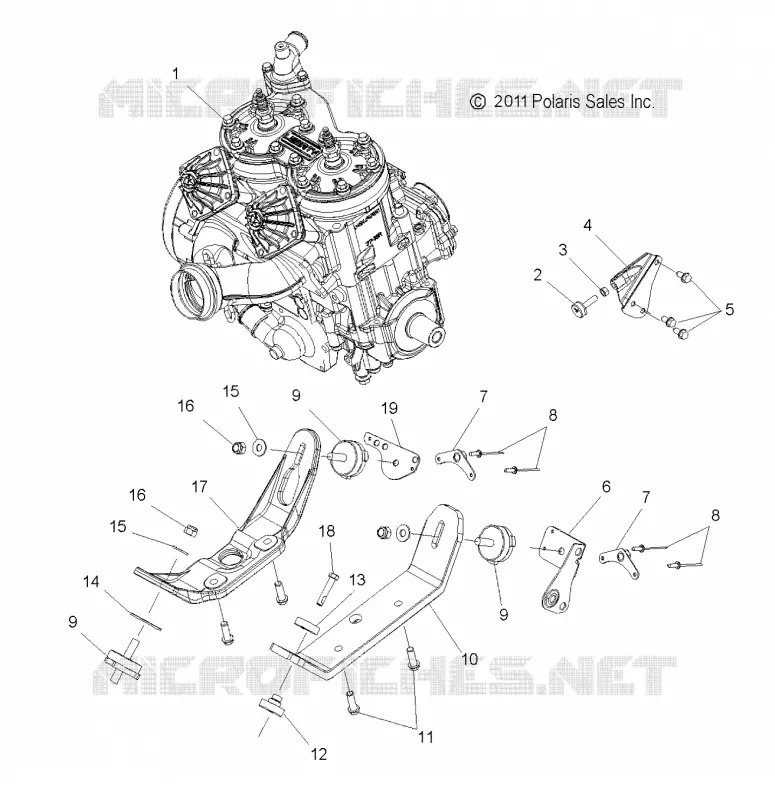

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
