1
Engine displacement
900
2
Year
2018
3
Trim
RANGER CREW XP 900 6 SEAT BASE / EPS
4
Parts Catalog
FUEL TANK
5
Parts Diagram
Parts Catalog
TAILGATE
by
SEAT
FUEL TANK
1
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
1
FUEL TANK ASSEMBLY
2521180
$1 816,49 Unit Price incl. VAT
1
KIT-FUEL PUMP REPLACEMENTRNGR
2521307
2204852
$698,24 Unit Price incl. VAT
2
FUEL LINE ASSEMBLY
2521226
$125,99 Unit Price incl. VAT
3
BRKT-TANK STRAP INSIDE GALV
5258203
$31,49 Unit Price incl. VAT
4
BRKT-TANK STRAP OUTSIDE GALV
5258204
$31,49 Unit Price incl. VAT
5
FUEL FILL HOSE
5414548
$125,99 Unit Price incl. VAT
6
FUEL INLET ASSEMBLY
2521311
9999999
Not Available
7
GAS TANK CAP
5439075
$47,24 Unit Price incl. VAT
8
BATTERY PAD
5810290
5810290-CO
$13,64 Unit Price incl. VAT
9
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
10
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
11
FUEL LINE-50 CENTIMETERS
845004050
Not Available
12
FOIL-FENDER JOINT;RH
5813526
$8,39 Unit Price incl. VAT
13
VENT LINE FILTER
5813554
9999999
Not Available
14
CLIP ROUTING .472 B.D. HINGED
7670116
$10,49 Unit Price incl. VAT

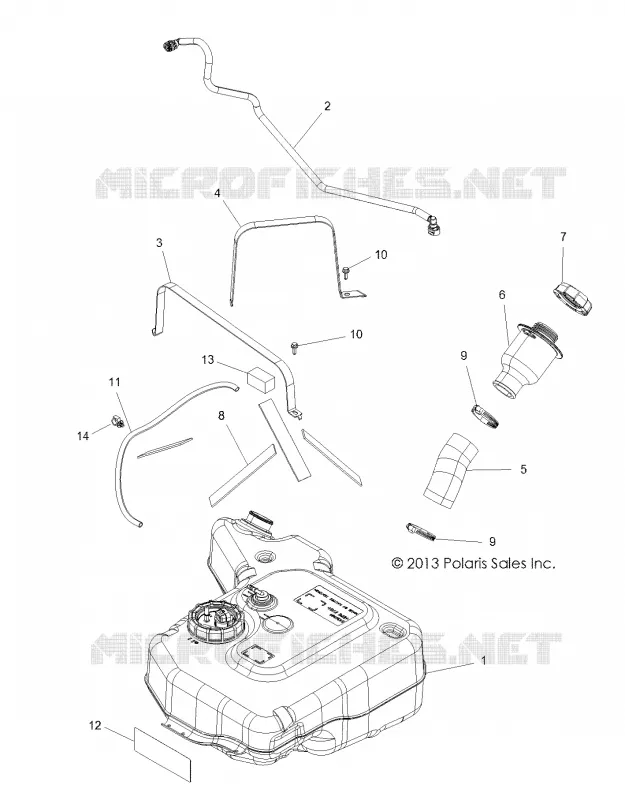

Find the detailed FUEL TANK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
