1
Engine displacement
900
2
Year
2018
3
Trim
RANGER CREW XP 900 6 SEAT BASE / EPS
4
Parts Catalog
SEAT
5
Parts Diagram
Parts Catalog
FUEL TANK
by
REAR BRAKE CALIPER
SEAT
1
1
2
3
3
4
5
5
6
7
7
8
9
9
10
11
12
13
14
15
15
16
17
18
19
19
20
21
22
23
1
SEAT ASSEMBLY; BOTTOM; GLOSS BLACK
2687901070
Not Available
1
BOTTOM SEAT ASSEMBLY; GLOSS BLACK
2684965070
Not Available
2
SEAT HINGE BRACKET
5259064
5274712
$16,79 Unit Price incl. VAT
3
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
4
SEAT LATCH PIN
5910404
$41,99 Unit Price incl. VAT
5
SEAT BOTTOM ASSEMBLY; GLOSS BLACK
2684966070
Not Available
5
SEAT BOTTOM; GLOSS BLACK
2687934070
Not Available
6
DOUBLE SEAT HINGE BRACKET
5259065
$19,94 Unit Price incl. VAT
7
3 PASSENGER BOTTOM SEAT ASM GLOSS BLACK
2688002070
Not Available
7
SEAT BOTTOM BASE 3 PASS; GLOSS BLACK
2685651070
Not Available
8
SEAT HINGE BRACKET
5256836
$19,94 Unit Price incl. VAT
9
SEAT BACK; GLOSS BLACK
2687899070
Not Available
9
SEAT BACK; GLOSS BLACK
2685653070
Not Available
10
GROMMET
5439179
$12,59 Unit Price incl. VAT
11
SEAT BELT ASSEMBLY CENTER 3 POINT
2635052
2638784
$330,74 Unit Price incl. VAT
12
SEAT BELT ASSEMBLY
2635118
2638785
$467,24 Unit Price incl. VAT
13
SEAT BELT BUCKLE WITH SWITCH
2635609
2637304
$204,74 Unit Price incl. VAT
14
COVER-SEAT BELT MOUNT
5415020
$62,99 Unit Price incl. VAT
15
BOLT HEAD CAP
5450708
9999999
Not Available
15
CAP-BOLT HEAD
5455285
$6,29 Unit Price incl. VAT
16
SEATBELT WASHER; RUBBER
5813829
$2,09 Unit Price incl. VAT
17
SEAT BASE PAD; REAR
5814036
$29,39 Unit Price incl. VAT
18
WIRE/TUMB CLAMP; .25
7081246
$2,09 Unit Price incl. VAT
19
HEX FLANGE SCREW 12MM X 1.75MM 14MM X9MM
7519770
$8,39 Unit Price incl. VAT
20
NUT NYLOK 12 MMX 1.5 MM
7540000
$7,34 Unit Price incl. VAT
21
HEX FLANGE NUT; 12 MM X 1.75 MM
7547441
$9,44 Unit Price incl. VAT
22
PASSENGER SEATBELT BUCKLE;
2635235
$125,99 Unit Price incl. VAT
23
DRIVER SEATBELT BUCKLE; 9.6
2635223
$115,49 Unit Price incl. VAT

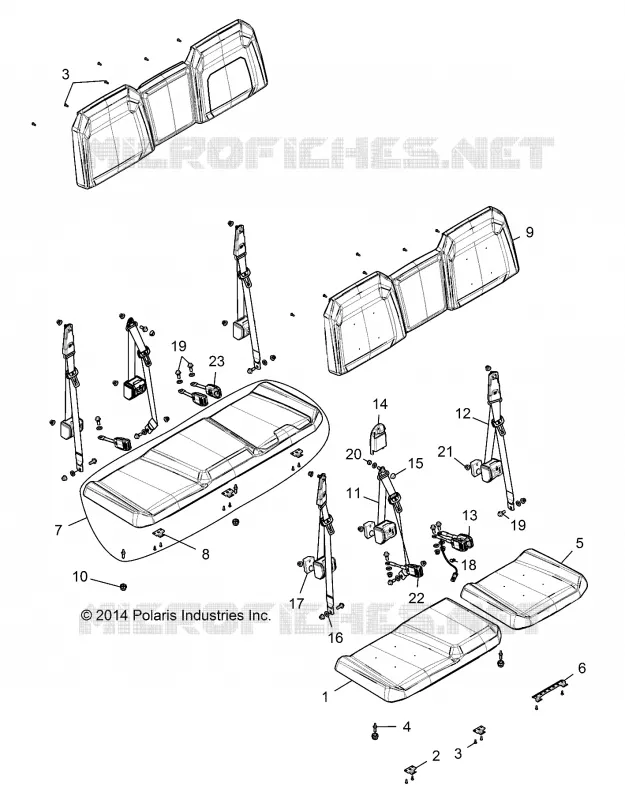

Find the detailed SEAT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
