1
Engine displacement
900
2
Year
2018
3
Trim
RANGER CREW XP 900 6 SEAT BASE / EPS
4
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE MOUNTING
by
DRIVE TRAIN, REAR DRIVE SHAFT
DRIVE TRAIN, PRIMARY CLUTCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
1
BASIC DRIVE CLUTCH ASSEMBLY
1323130
$992,24 Unit Price incl. VAT
2
ROLLER AND BUSHING ASSEMBLY
1321622
$62,99 Unit Price incl. VAT
3
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
4
DU BUSHING; 1.75
3514492
$54,59 Unit Price incl. VAT
5
NEEDLE BEARING
3514609
$60,89 Unit Price incl. VAT
6
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
7
WASHER CLUTCH SPIDER ROLLER
5438247
$3,14 Unit Price incl. VAT
8
CLUTCH BUTTON
5450940
$14,69 Unit Price incl. VAT
9
CLUTCH SPACER
5633000
$52,49 Unit Price incl. VAT
10
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT
11
SCR-1/4-20X2 1/4 HX WH GR5-Y
7518349
$2,09 Unit Price incl. VAT
12
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
13
CLUTCH WASHER
7556335
$11,54 Unit Price incl. VAT
14
SHIFT WEIGHT; 27-81
5140011
$62,99 Unit Price incl. VAT
15
CLUTCH SPRING; 90-155
7044111
$120,74 Unit Price incl. VAT
16
CLUTCH WASHER; RETAINER
5132441
$41,99 Unit Price incl. VAT
17
SCR-M14X1.5X215; HX; 8.8
7519208
7518412
$52,49 Unit Price incl. VAT
18
WASHER
7556003
$11,54 Unit Price incl. VAT
19
JAM NUT
7547498
$41,99 Unit Price incl. VAT

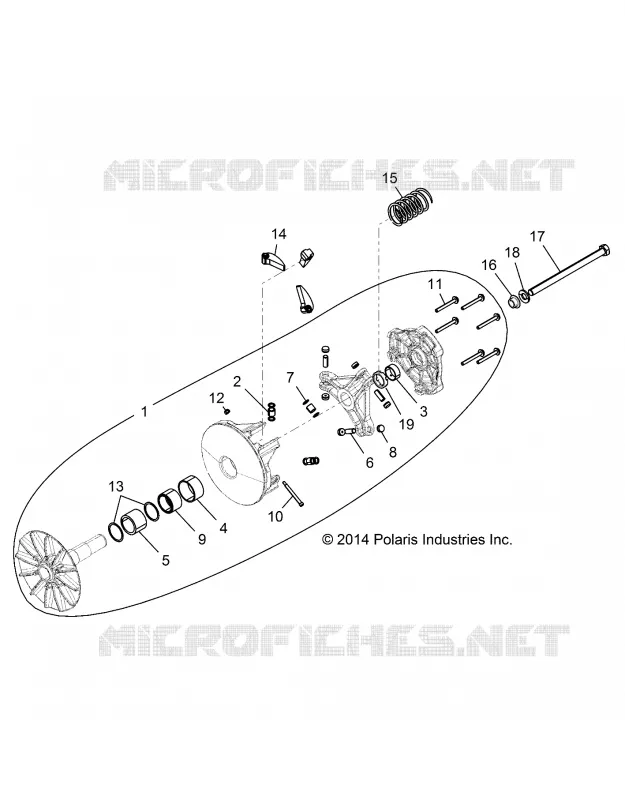

Find the detailed DRIVE TRAIN, PRIMARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
