1
Engine displacement
900
2
Year
2016
3
Trim
RANGER CREW 900 ALL OPTIONS
4
Parts Catalog
EXHAUST
5
Parts Diagram
Parts Catalog
ENGINE, ENGINE MOUNTING
by
ENGINE, INTAKE THROTTLE BODY
EXHAUST
1
1
1
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
1
HEADPIPE ASSEMBLY; 900
1262693
$666,74 Unit Price incl. VAT
1
HEAT SHIELD EXHAUST CLAMP
7081156
$13,64 Unit Price incl. VAT
1
WELD-SHIELD BTM;HEADPIPE
1262351
9999999
Not Available
1
WELD-SHIELD TOP;HEADPIPE
1262350
9999999
Not Available
2
ASM-SILENCER RGR CAT/O2
1262694
9999999
Not Available
3
SPARK ARRESTOR
1262123
$99,74 Unit Price incl. VAT
4
SILENCER SHIELD
5257719
$136,49 Unit Price incl. VAT
5
ISOLATOR MOUNT
5438965
$52,49 Unit Price incl. VAT
6
HEAT SHIELD FOIL; TOP
5813762
9999999
Not Available
7
HEAT SHIELD; FOIL; BOTTOM
5813763
$89,24 Unit Price incl. VAT
8
EXHAUST GASKET SEAL
3610184
$89,24 Unit Price incl. VAT
9
HX SCREW 8MMX1.25PX22MML
7518984
$14,69 Unit Price incl. VAT
10
HEX FLANGE HD SCREW; 6 MM X 12 MM
7517257
$17,84 Unit Price incl. VAT
11
SCR-1/4-20X1/2 TFM HW-M
7518490
$2,09 Unit Price incl. VAT
12
NUT
7547120
$9,44 Unit Price incl. VAT
13
WASHER
7555935
$4,19 Unit Price incl. VAT
14
DOUBLE SPHERICAL GASKET; 2 IN
3610248
$68,24 Unit Price incl. VAT
15
SPHERICAL EXHAUST SPRING
7044274
$29,39 Unit Price incl. VAT
16
EXHAUST STUD; SPHERICAL
7520079
$25,19 Unit Price incl. VAT
17
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
18
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
19
BRKT-BOX CLOSE OFF
5261192
2206653
$16,37 Unit Price incl. VAT
20
OXYGEN SENSOR
4016021
$314,99 Unit Price incl. VAT

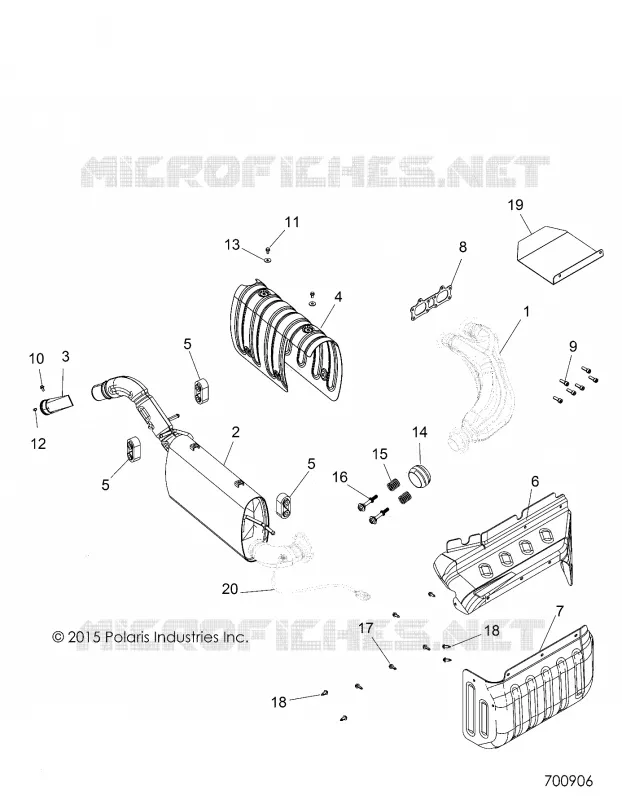

Find the detailed EXHAUST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
