1
Engine displacement
900
2
Year
2016
3
Trim
RANGER CREW 900 ALL OPTIONS
4
Parts Catalog
STEERING (EPS)
5
Parts Diagram
Parts Catalog
ENGINE, STATOR AND COVER
by
FRONT SUSPENSION CONTROL ARMS
STEERING (EPS)
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
13
13
14
15
16
17
18
19
20
20
21
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
8
9
10
1
STEERING GEAR BOX ASSEMBLY
1823902
$1 018,49 Unit Price incl. VAT
2
DRIVER SIDE BOOT RACK
5412012
$115,49 Unit Price incl. VAT
3
PASSENGER SIDE BOOT RACK
5412013
$104,99 Unit Price incl. VAT
4
ROD END 10MM 1/2-20LH 42 DEG
7061054
7061138
$104,99 Unit Price incl. VAT
5
NUT JAM; LEFT
7547028
$4,19 Unit Price incl. VAT
6
BOOT CLAMP; SMALL
7080978
$4,19 Unit Price incl. VAT
7
BOOT CLAMP; LARGE
7080979
$10,49 Unit Price incl. VAT
8
BOLT 10 MM X 1.25 MM X 65 MM
7517909
$10,49 Unit Price incl. VAT
9
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
10
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
11
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
12
ASM-TILT STEERING RVTD M10 BLK
1824420458
Not Available
13
STEERING BEARING
3514686
$16,79 Unit Price incl. VAT
14
BOLT-M10X1.25X130 HXFLG-OLIVED
7518665
$25,19 Unit Price incl. VAT
15
OIL LOCKING SHOCK ASSEMBLY
7044098
$178,49 Unit Price incl. VAT
16
BOLT-SHOULDER M8-15 M6X1.0-BLK
7519980
$13,64 Unit Price incl. VAT
17
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
18
HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM
7518644
$9,44 Unit Price incl. VAT
19
NUT-NY INS;M10X1.5;HEX;ZINC;YW
7547385
$2,09 Unit Price incl. VAT
20
HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM
7519052
$3,14 Unit Price incl. VAT
21
STEERING BUSHING
7556675
$24,14 Unit Price incl. VAT
22
STEERING SHAFT; UPPER
1823891
$272,99 Unit Price incl. VAT
23
STEERING SHAFT WITH JOINT; LOWER
1823667
$241,49 Unit Price incl. VAT
24
EPAS MOUNT WELD; BLACK
1021526329
Not Available
25
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
26
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT
27
ASM-POWER STEERING;RANGER
2413397
9999999
Not Available
28
STEERING WHEEL CAP
5438865
$9,44 Unit Price incl. VAT
29
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
30
STEERING WHEEL
1823622
$246,74 Unit Price incl. VAT

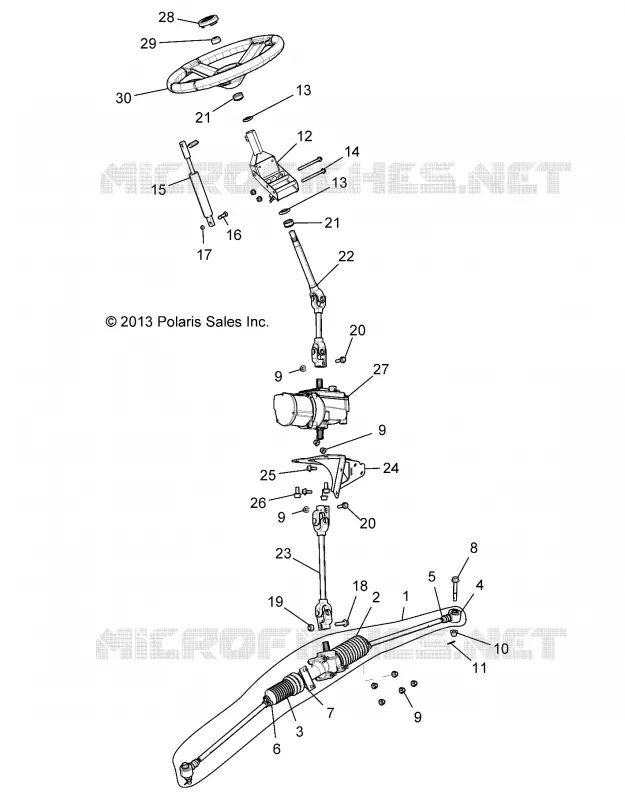

Find the detailed STEERING (EPS) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
