Engine displacement
900
2
Year
2016
3
Trim
RANGER CREW 900 ALL OPTIONS
4
Parts Catalog
CHASSIS, CAB FRAME
5
Parts Diagram
Parts Catalog
DRIVERS DEAT SLIDER
by
CHASSIS, FRONT BUMPER
CHASSIS, CAB FRAME
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
21
22
1
CAB FRAME WELD; REAR; MATTE BLACK
1021852458
Not Available
2
HEX FLANGE SCREW 10 MM X 1.25 MM X 80 MM
7519363
7528444
$4,19 Unit Price incl. VAT
3
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
4
CAB FRAME WELD; FRONT; LEFT; MATTE BLACK
1019521458
Not Available
5
CAB FRAME WELD; FRONT; RIGHT; MT BLK
1019523458
Not Available
6
CAB FRAME WELD; REAR; LEFT; MATTE BLACK
1019526458
Not Available
7
CAB FRAME WELD; REAR; RIGHT; MATTE BLACK
1019527458
Not Available
8
SOCKET HEAD SCREW 10 MM X 1.5 MM X 35 MM
7519959
$3,14 Unit Price incl. VAT
9
NYLOC NUT; 10 MM X 1.5 MM
7547268
$2,09 Unit Price incl. VAT
10
HIP BOLSTER TUBE; MATTE BLACK
5338917458
Not Available
11
HIP BOLSTER TUBE; FRONT; MATTE BLACK
5338918458
Not Available
12
HEX FLANGE SCREW; 8 MM X 1.25 MM X 20 MM
7519133
$3,14 Unit Price incl. VAT
13
BOLT
7519650
$7,34 Unit Price incl. VAT
14
CAB FRAME WELD; CENTER; MATTE BLACK
1021166458
Not Available
14
CENTER CAB FRAME WELD; MATTE BLACK
1021165458
Not Available
15
GLOSS BLACK HEADREST
5439110070
Not Available
16
UPPER WINDSHIELD MOUNT PLATE; MT BLK
5255166458
Not Available
17
HEX FLANGE BOLT; 10 MM X 1.5 MM X 20 MM
7518460
$3,14 Unit Price incl. VAT
18
FENDER PLUG; REAR
7671178
9999999
Not Available
19
ROPS (ROPS) GRAB HANDLE GLOSS BLK
5450844070
Not Available
20
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
21
WASHER
7555923
$4,19 Unit Price incl. VAT
22
RIVET
7621460
$2,09 Unit Price incl. VAT

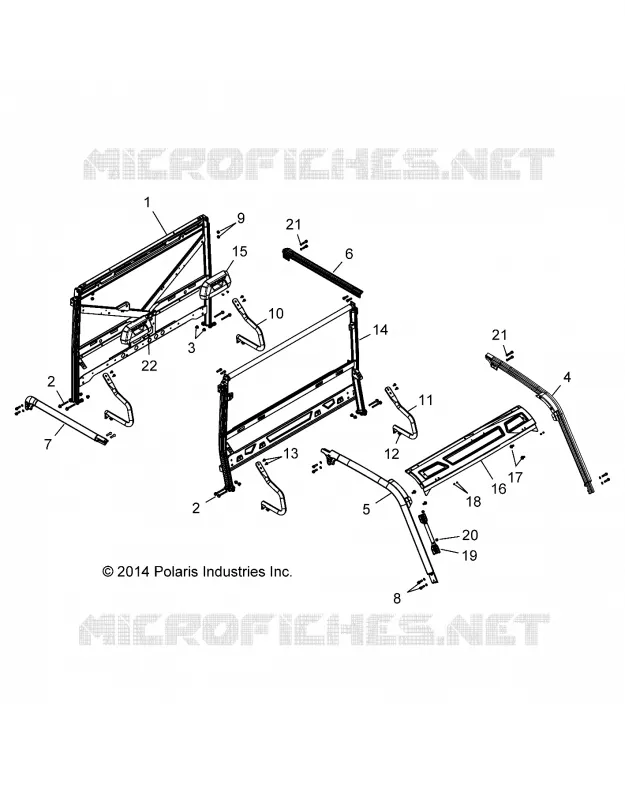

Find the detailed CHASSIS, CAB FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
