1
Engine displacement
500
2
Year
1997
3
Trim
500 EFI - 0973774
4
Parts Catalog
SEAT GAS TANK 500 EFI 0973774 (4938423842A006)
5
Parts Diagram
Parts Catalog
TUNNEL 500 EFI 0973774 (4938423842A005)
by
DECALS 500 EFI 0973774 (4938423842A012)
SEAT GAS TANK 500 EFI 0973774 (4938423842A006)
1
1
2
3
4
5
6
7
7
8
9
10
11
11
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
GAS CAP GASKET
5810513
$15,74 Unit Price incl. VAT
1
GAS CAP W/ GAUGE
2511248
$83,99 Unit Price incl. VAT
2
GROMMET; FUEL TANK
5410815
9999999
Not Available
3
GROMMET RELATCH 1 BOTT.
7080550
9999999
Not Available
4
GROMMET RELATCH 1 TOP
7080549
9999999
Not Available
5
TWISTLOCK RELATCH 1 IN W/HOLE
7080548
9999999
Not Available
6
RIVET(10)
7621337
9999999
Not Available
7
TAILLIGHT BULB
4030024
9999999
Not Available
8
LENS TAILLIGHT
5430423
9999999
Not Available
9
SCREW
7511840
9999999
Not Available
10
BULB
4030045
9999999
Not Available
11
COVER SEAT LONG 500 EFI
2682111
Not Available
11
SEAT ASM;LONG;500 EFI
2681985
9999999
Not Available
12
HARNESS TAILLIGHT
2460398
Not Available
13
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
14
CLIP DART (10)
7670097
9999999
Not Available
15
WELD NUT RETAINERS
7542147
9999999
Not Available
16
HOUSING TAILLIGHT
5431545
9999999
Not Available
17
COVER T/L PROTECTOR
5431436
9999999
Not Available
18
RIVET(10)
7621301
9999999
Not Available
19
SCREW
7512242
$4,19 Unit Price incl. VAT
20
RIVET(10) ALUM.
7621464
9999999
Not Available
21
PICKUP;FUEL;W/STRAINER
7052081
9999999
Not Available
22
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
23
FUEL LINE; 1/4 ID
84500031525
Not Available
24
GROMMET
7052028
$11,54 Unit Price incl. VAT
25
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
26
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
27
FUEL LINE; 600 CM
8450040600
Not Available
28
FITTING;TANK OUTLET(5/16)
7052059
9999999
Not Available
29
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
30
FUEL LINE; 5 FT.
8450045153
Not Available
31
SPRING PROTECT.VENTHOSE
7041605
Not Available
32
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
33
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
34
CABLE TANK RETENTION
7080559
9999999
Not Available

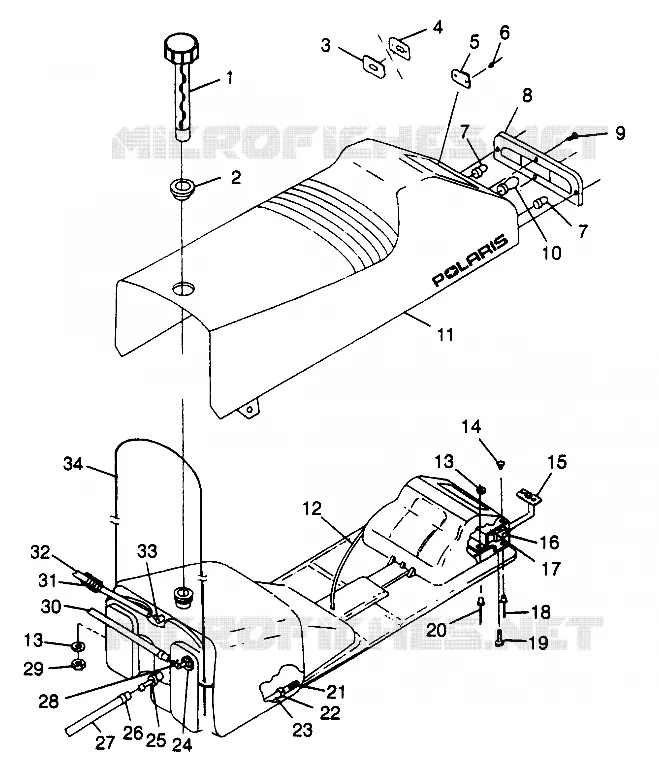

Find the detailed SEAT GAS TANK 500 EFI 0973774 (4938423842A006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
