1
Engine displacement
500
2
Year
1997
3
Trim
500 EFI - 0973774
4
Parts Catalog
FRONT TORQUE ARM 500 EFI 0973774 (4938423842B011)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM 500 EFI 0973774 (4938423842B006)
by
REAR TORQUE ARM 500 EFI 0973774 (4938423842B012)
FRONT TORQUE ARM 500 EFI 0973774 (4938423842B011)
1
2
3
4
5
6
7
7
7
7
8
8
9
10
10
11
11
12
13
14
15
15
1
BOLT
7512589
$3,14 Unit Price incl. VAT
2
LOCK WASHER
7552614
$3,14 Unit Price incl. VAT
3
FLAT WASHER
7555984
$4,19 Unit Price incl. VAT
4
SHAFT; UPPER;
5020812
9999999
Not Available
5
ARM F.TORQUE
1540969067
Not Available
6
STRAP LIMITER
5410938
9999999
Not Available
7
WASHER
7555716
$3,14 Unit Price incl. VAT
8
BOLT
7515307
$7,34 Unit Price incl. VAT
9
NUT LOCK
7542403
9999999
Not Available
10
WASHER
7555743
9999999
Not Available
11
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
12
SHAFT
5020813
9999999
Not Available
13
RIVET
7621418
$2,09 Unit Price incl. VAT
14
BUMPER
5432166
$9,44 Unit Price incl. VAT
15
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT

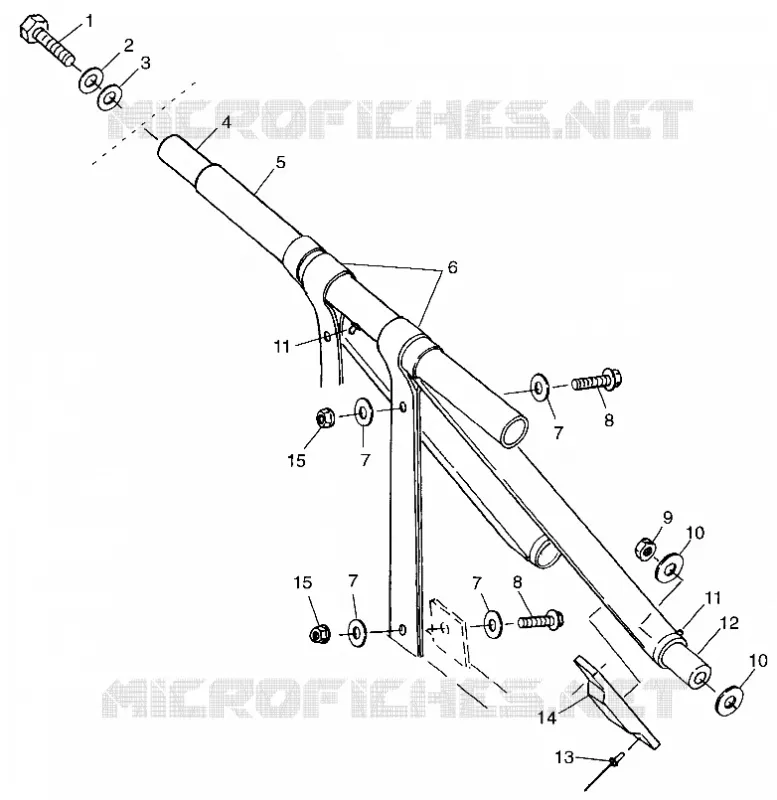

Find the detailed FRONT TORQUE ARM 500 EFI 0973774 (4938423842B011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
