1
Engine displacement
500
2
Year
1997
3
Trim
500 EFI - 0973774
4
Parts Catalog
TUNNEL 500 EFI 0973774 (4938423842A005)
5
Parts Diagram
Parts Catalog
TOOL KIT 500 EFI 0973774 (4938423842D001)
by
SEAT GAS TANK 500 EFI 0973774 (4938423842A006)
TUNNEL 500 EFI 0973774 (4938423842A005)
1
1
2
2
3
3
4
4
4
5
5
5
5
5
6
7
8
8
8
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
24
24
24
24
25
26
27
28
29
30
31
32
32
32
32
33
34
35
36
37
38
39
40
41
1
BUMPER HOOD
5410768
9999999
Not Available
2
SCREW
7512057
9999999
Not Available
3
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT
4
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
5
RIVET
7661637
$2,09 Unit Price incl. VAT
6
DECAL TOP TUNNEL STRIP
7073978
Not Available
7
SNAP-MALE
7080227
9999999
Not Available
8
RIVET SEMI-TUBE (10)
7661840
9999999
Not Available
9
NUT SERT
7541938
9999999
Not Available
10
PAD LH RR SUSP(X12) BLK
1012431067
Not Available
10
PAD RH RR SUSP(X12) BLK
1012432067
Not Available
11
FLAP SNOW (XTRA-12)
5432033
Not Available
12
RIVET
7621418
$2,09 Unit Price incl. VAT
13
PANEL TUNNELBACK
5241053
9999999
Not Available
14
TUNNEL LIQ. BLK. Substituted by 1012343-067 (Incl. Heat Exchangers)
1012343
Not Available
15
BUMPER REAR STD.
5224674067
Not Available
16
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
17
SCREW
7511863
9999999
Not Available
18
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
19
CAP BUMPER BLK.
5430930070
Not Available
20
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
21
BOLT
7512240
9999999
Not Available
22
RIVET SEMI-TUBE (50)
7661841
9999999
Not Available
23
RIVET(10)
7661846
9999999
Not Available
24
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
25
MT CONSOLE LH
1011951067
Not Available
26
SUPPORT BUMPERSIDE BLK.
5240294067
Not Available
27
STOP;SIDEPANEL BUMPER
5411172
9999999
Not Available
28
FOOTREST ASM LH Substituted by 1012544
1012337
Not Available
29
RIVET(10)
7621222
9999999
Not Available
30
PLATE F.SUSP OUT X-12 BLK
5211746067
Not Available
31
GUARD ADAPTER GUIDE
5222857
9999999
Not Available
32
MOUNT LH F.SUSP.BLK.
1012269067
Not Available
32
MOUNT RH F.SUSP.BLK.
1012270067
Not Available
33
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
34
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
35
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
36
BUSHING OPEN/CLOSE
7080399
9999999
Not Available
37
BULKHEAD 500 EFI BLK
1012480067
Not Available
38
ROPE GUIDE BRACKET; MEDIUM GLOSS BLACK
5222687067
Not Available
39
BRACE TUNNEL REINF.CORNER Substituted by 5244452
5241852
Not Available
40
FOOTREST ASM RH Substituted by 1011935
1012338
Not Available
41
MT CONSOLE RH
1011952067
Not Available

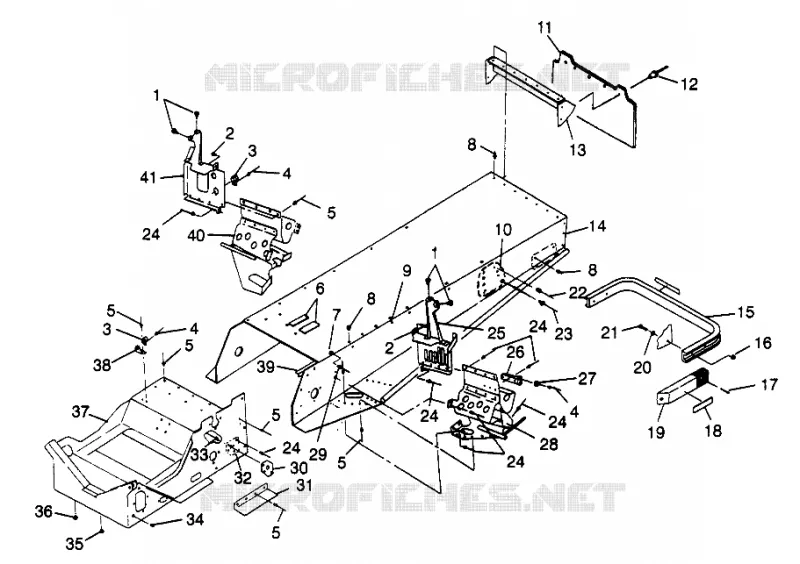

Find the detailed TUNNEL 500 EFI 0973774 (4938423842A005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
