1
Engine displacement
2000
2
Year
2022
3
Trim
SLINGSHOT SL / SLR / R
4
Parts Catalog
CHASSIS, MAIN, AND REAR ASM.
5
Parts Diagram
Parts Catalog
CHASSIS, HOOD HINGE CABLE ASM.
by
CONTROLS, FOOT CONTROLS AUTO
CHASSIS, MAIN, AND REAR ASM.
1
2
3
3
4
4
5
6
7
8
9
10
11
11
11
11
12
13
14
15
1
WELD-SUBFRAME REAR
1026167
$1 454,24 Unit Price incl. VAT
2
BRACE TUBE WELD; REAR
1021668
$230,99 Unit Price incl. VAT
3
ASM-WIRE GUIDE SEAT BELT LH
2637686
$125,99 Unit Price incl. VAT
3
ASM-WIRE GUIDE SEAT BELT LH
2638314
$141,74 Unit Price incl. VAT
4
ASM-WIRE GUIDE SEAT BELT RH
2637687
$125,99 Unit Price incl. VAT
4
ASM-WIRE GUIDE SEAT BELT RH
2638315
$141,74 Unit Price incl. VAT
5
SCREW
7517281
$13,64 Unit Price incl. VAT
6
SCR-HXFL-M10X1.5X90 10.9 ZOD
7519790
$4,71 Unit Price incl. VAT
7
SCR-HXFL-M12X1.75X70 10.9 ZFB
752133470
Not Available
8
NUT
7547017
$10,49 Unit Price incl. VAT
9
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
10
CLIP-DART TRW PC47561
7670142
$2,09 Unit Price incl. VAT
11
WELD-MAINFRAME CHASSIS CRS BLK
1027912266
Not Available
11
WELD-MAINFRAME CHASSIS HVS RED
1027912292
Not Available
11
WELD-MAINFRAME CHASSIS LFTD LM
1027912801
Not Available
11
WELD-MAINFRAME CHASSIS SLS ORG
1027912881
Not Available
12
ROLL HOOP LEFT FLAT BLACK
5142237463
Not Available
13
ROLL HOOP; RIGHT; FLAT BLACK
5142238463
Not Available
14
HOOP-ROLL LH FLAT BLACK
1026368463
Not Available
15
HOOP-ROLL RH FLAT BLACK
1026369463
Not Available

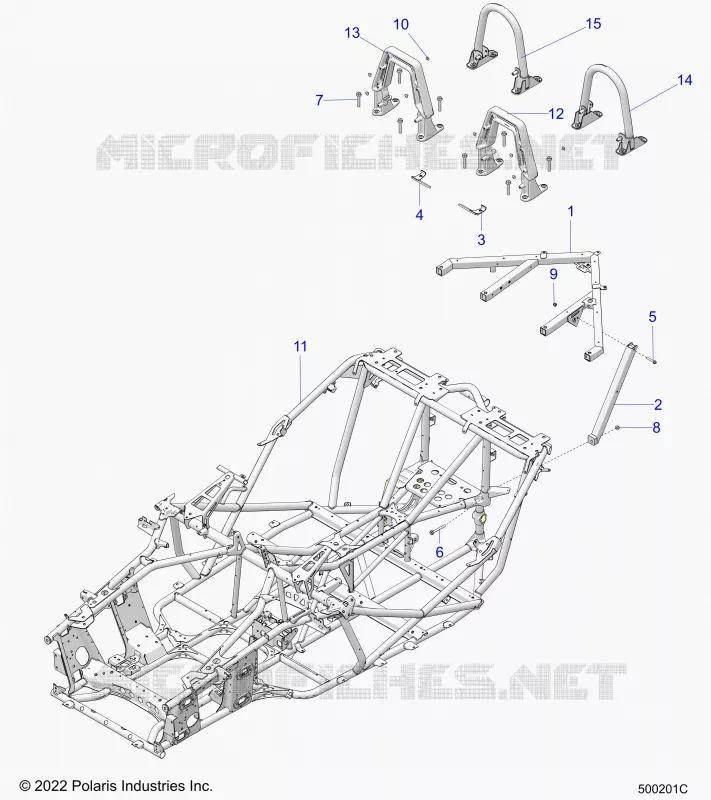

Find the detailed CHASSIS, MAIN, AND REAR ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
