1
Engine displacement
2000
2
Year
2022
3
Trim
SLINGSHOT SL / SLR / R
4
Parts Catalog
SEAT (PASSENGER) AND SEAT BELT MOUNTING
5
Parts Diagram
Parts Catalog
SEAT (DRIVER) AND SEAT BELT MOUNTING
by
BODY, WINDSCREEN (USA)
SEAT (PASSENGER) AND SEAT BELT MOUNTING
1
1
2
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
5
6
7
7
8
8
8
8
8
8
8
8
8
8
9
9
9
10
10
11
12
12
13
1
BOLT
7512520
$9,44 Unit Price incl. VAT
2
PASSENGER SEAT BUCKLE ASSEMBLY
2635731
$115,49 Unit Price incl. VAT
3
ASM-SEAT BCK CND BK ST TOUR RH
2692439VBE
Not Available
3
ASM-SEAT BACK BLK BLK ST RH
2692438VBA
Not Available
3
ASM-SEAT BCK BASE CND BK/OR RH
2692439VBD
Not Available
3
ASM-SEAT BCK PREM US BK OR RH
2692440VBC
Not Available
3
ASM-SEAT BCK H/C GRY ST RH
2692667VBB
Not Available
3
ASM-SEAT BACK H/C GRY CND RH
2692669VBB
Not Available
3
ASM-SEAT BCK;CND;BLK;BLK ST;RH
2692439VBA
Not Available
3
ASM-SEAT BCK H/C GRY ST RH
2692441VBB
Not Available
3
ASM-SEAT BCK PREM US BLK RD RH
2692440VBB
Not Available
3
ASM-SEAT BACK BLACK ST TOUR RH
2692438VBE
Not Available
3
ASM-SEAT BACK PREM BK GR ST RH
2692440VBA
Not Available
4
SCR-HXFL-M10X1.5X20 10.9 ZFB
752133320
Not Available
5
SEAT BELT ASSEMBLY
2635442
$309,74 Unit Price incl. VAT
6
WELD-SEAT RAIL FIXED LH
1027154
$220,49 Unit Price incl. VAT
7
HANDLE-SEAT RECLINER
5458879
$62,99 Unit Price incl. VAT
8
ASM-SEAT BTM PREM US BLK ORG
2692361VBC
Not Available
8
ASM-SEAT BTM PREM US BK GR ST
2692361VBA
Not Available
8
ASM-SEAT BTM CND BLK GR ST
2692358VBB
Not Available
8
ASM-SEAT BTM H/C GRYST
2692363VBB
Not Available
8
ASM-SEAT BTM BLACK BLK ST
2692358VBA
Not Available
8
ASM-SEAT BTM CND BLK ORG ST
2692358VBD
Not Available
8
ASM-SEAT BTM H/C RED ST
2692363VBA
Not Available
8
ASM-SEAT BTM PREM US BLK RD ST
2692361VBB
Not Available
8
ASM-SEAT BTM BLACK ST TOUR
2692358VBE
Not Available
8
ASM-SEAT BTM CND BLK RED ST
2692358VBC
Not Available
9
SCR-SHLDR-HXFLG M8X1.25X16X14
7527967
$12,59 Unit Price incl. VAT
10
HEX FLANGE SCREW 12MM X 1.75MM 14MM X9MM
7519770
$8,39 Unit Price incl. VAT
11
SEATBELT WASHER; RUBBER
5813829
$2,09 Unit Price incl. VAT
12
WELD-SEAT RAIL FIXED RH
1027155
$220,49 Unit Price incl. VAT
13
ASM-SEAT BOTTOM SLIDE RH
1027150
$1 175,99 Unit Price incl. VAT

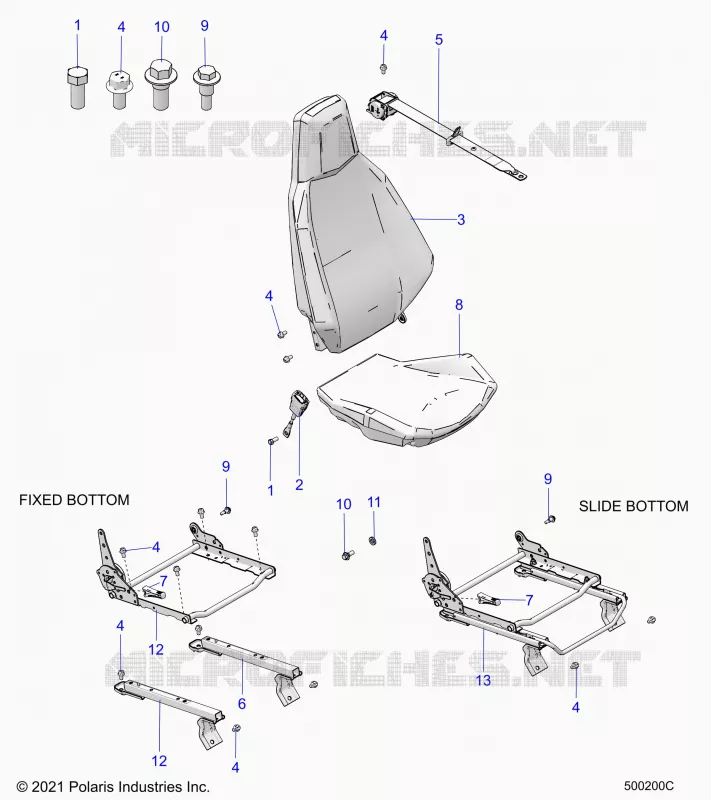

Find the detailed SEAT (PASSENGER) AND SEAT BELT MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
