1
Engine displacement
2000
2
Year
2022
3
Trim
SLINGSHOT SL / SLR / R
4
Parts Catalog
HOOD, STANDARD
5
Parts Diagram
Parts Catalog
HOOD HINGE ASM.
by
HOOD, VENTED (SL/SLR/R OPTION)

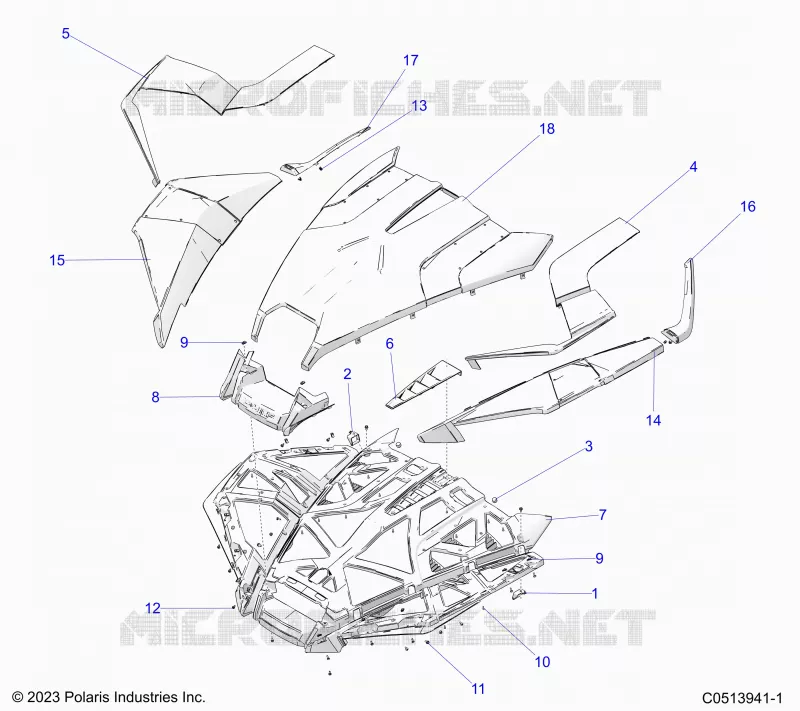

HOOD, STANDARD
8
8
9
9
10
11
12
13
14
14
14
14
14
14
14
14
14
15
15
15
15
15
15
15
15
15
16
16
16
16
16
16
16
16
16
17
17
17
17
17
17
17
17
17
18
18
18
18
18
18
18
18
18
1
WELD-HOOD LATCH STRIKER;RR;LH
1025581
$73,49 Unit Price incl. VAT
2
WELD-HOOD LATCH STRIKER;RR;RH
1025582
$73,49 Unit Price incl. VAT
3
BUMPER-RUBBER .62 STEALTH
5411435
$6,29 Unit Price incl. VAT
4
PANEL-ACCNT LH PNTD CARIBN TL
5453708882
Not Available
4
PANEL-ACCENT LH SLG ORG
5453708881
Not Available
4
PANEL-ACCENT LH PAINTED PSNGRN
5453708772
Not Available
4
ACCENT PANNEL; LEFT
5439642
$629,99 Unit Price incl. VAT
4
PANEL-ACCENT LH MTTE NVY BLU
5453708726
Not Available
4
PANEL-ACCENT LH PAINTED CRS BK
5453708266
Not Available
5
PANEL-ACCENT RH PAINTED PSNGRN
5453709772
Not Available
5
ACCENT PANEL; RIGHT
5439643
$629,99 Unit Price incl. VAT
5
PANEL-ACCENT RH MTTE NVY BLU
5453709726
Not Available
5
PANEL-ACCENT RH PAINTED CRS BK
5453709266
Not Available
5
PANEL-ACCNT RH PNTD CARIBN TL
5453709882
Not Available
5
PANEL-ACCENT RH SLG ORG
5453709881
Not Available
6
CENTER HOOD VENT
5452300
$157,49 Unit Price incl. VAT
7
HOOD SUBSTRUCTURE
5455591
$2 189,24 Unit Price incl. VAT
8
NOSE-FRONT HOOD LED HLIGHTS
5457497
$556,49 Unit Price incl. VAT
8
NOSE-FRONT HOOD W/O HLIGHTS
5457496
$397,94 Unit Price incl. VAT
9
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
10
SCREW
7512026
$2,09 Unit Price incl. VAT
11
SCR-HXFL-M8X1X16 8.8 ZOD
7519181
$10,49 Unit Price incl. VAT
12
BUTTON HEAD HEX SCREW 6MM X 1.0MM X 15MM
7519774
$7,34 Unit Price incl. VAT
13
TINNERMAN CLIP
7670136
$4,19 Unit Price incl. VAT
14
FENDER FRONT LEFT SLINGSHOT
5439640676
Not Available
14
FENDER-FRONT LH CARIBBN TEAL
5439640882
Not Available
14
FENDER-FRONT LH IND SKY BL
5439640737
Not Available
14
FENDER FRT LEFT POISON GREEN GOLD PEARL
5439640772
Not Available
14
FENDER-FRONT LH GHOST WH MTTLC
5439640774
Not Available
14
FENDER-FRONT LH QRTZ GRY
5439640875
Not Available
14
FENDER-FRONT LH SLG ORG
5439640881
Not Available
14
FENDER-FRONT LH POL BLU MTTLC
5439640751
Not Available
14
FENDER-FRONT LH MTTE NVY BLU
5439640726
Not Available
15
FENDER-FRONT RH IND SKY BL
5439641737
Not Available
15
FENDER-FRONT RH SLG ORG
5439641881
Not Available
15
FENDER-FRONT RH POL BLU MTTLC
5439641751
Not Available
15
FENDER-FRONT RH MTTE NVY BLU
5439641726
Not Available
15
FENDER-FRONT RH GHOST WH MTTLC
5439641774
Not Available
15
FENDER FRONT RIGHT SLINGSHOT RED PEARL
5439641676
Not Available
15
FENDER-FRONT RH QRTZ GRY
5439641875
Not Available
15
FENDER FRT RIGHT POISON GREEN GOLD PEARL
5439641772
Not Available
15
FENDER-FRONT RH CARIBBN TEAL
5439641882
Not Available
16
FNDR TRIM LFT SS RED PRL SS
5450049676
Not Available
16
TRIM-FENDER LH IND SKY BL
5450049737
Not Available
16
TRIM-FENDER LH QRTZ GRY
5450049875
Not Available
16
TRIM-FENDER LH POISNGRNPRL
5450049772
Not Available
16
TRIM-FENDER LH SLG ORG
5450049881
Not Available
16
TRIM-FENDER LH CARIBBN TL
5450049882
Not Available
16
TRIM-FENDER LH GHOST WHT MTCL
5450049774
Not Available
16
TRIM-FENDER LH POL BLU MTLC
5450049751
Not Available
16
TRIM-FENDER LH MTTE NVY BLU
5450049726
Not Available
17
TRIM-FENDER RH QRTZ GRY
5450050875
Not Available
17
TRIM-FENDER RH GHOST WHT MTTLC
5450050774
Not Available
17
TRIM-FENDER RH IND SKY BL
5450050737
Not Available
17
TRIM-FENDER RH MTTE NVY BLU
5450050726
Not Available
17
TRIM-FENDER RH POL BLU MTCL
5450050751
Not Available
17
TRIM-FENDER RH SLG ORG
5450050881
Not Available
17
TRIM-FENDER RH POISNGRNPRL
5450050772
Not Available
17
FENDER TRIM; RIGHT; SLINGSHOT RED PEARL
5450050676
Not Available
17
TRIM-FENDER RH CARIBBN TL
5450050882
Not Available
18
MAIN HOOD PANEL; SLINGSHOT RED PEARL
5452895676
Not Available
18
HOOD-PANEL MAIN ONYX BLK SMOKE
5452895866
Not Available
18
HOOD-PANEL MAIN GHOST WHT MTLC
5452895774
Not Available
18
HOOD-PANEL MAIN POLBLU METLC
5452895751
Not Available
18
HOOD-PANEL MAIN SLG ORG
5452895881
Not Available
18
MAIN HOOD PANEL; POISON GREEN GOLD PEARL
5452895772
Not Available
18
HOOD-PANEL MAIN CARIBBN TL
5452895882
Not Available
18
HOOD-PANEL MAIN MATTE NVY BL
5452895726
Not Available
18
HOOD-PANEL MAIN IND SKY BLU
5452895737
Not Available

Find the detailed HOOD, STANDARD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
