1
Engine displacement
550
2
Year
2009
3
Trim
SPORTSMAN XP EPS 550 - A09ZX55AC/AL/AQ/AS/AX
4
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CRANKCASE
by
CYLINDER
ENGINE, CRANKSHAFT AND PISTON
1
2
2
2
3
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
1
2
3
4
5
6
1
CRANKSHAFT ASSY.
3090210
9999999
Not Available
2
STANDARD PISTON
3090173
9999999
Not Available
2
PISTON SET
3090174
9999999
Not Available
2
PISTON SET; 0.50
3090175
9999999
Not Available
3
PISTON RING SET
3090177
9999999
Not Available
3
PISTON RING STANDARD
3090110
9999999
Not Available
3
PISTON RING SET 0.25
3090176
9999999
Not Available
4
CONNECTING ROD
3090172
9999999
Not Available
5
BEARING LARGE END
3085343
9999999
Not Available
6
BALL; STEEL
3085024
9999999
Not Available
7
BALANCER GEAR (DRIVE)
3090211
9999999
Not Available
8
BALL BEARING
3080676
9999999
Not Available
9
CRANK SPROCKET
3090108
9999999
Not Available
10
CRANKSHAFT-1
3090169
9999999
Not Available
11
PISTON PIN
3090109
9999999
Not Available
12
CRANKSHAFT-2
3090170
9999999
Not Available
13
CLIP
3085534
9999999
Not Available
14
BALANCER SHAFT 1 COMPL.
3090212
9999999
Not Available
15
BALANCER SHAFT 2 COMPL.
3090213
9999999
Not Available
16
KEY; WOODRUFF
3240168
9999999
Not Available
17
NUT
3090113
9999999
Not Available
18
WASHER
3090114
9999999
Not Available
19
NEEDLE BEARING
3087976
9999999
Not Available
20
PIN-CRANK CP
3090171
9999999
Not Available

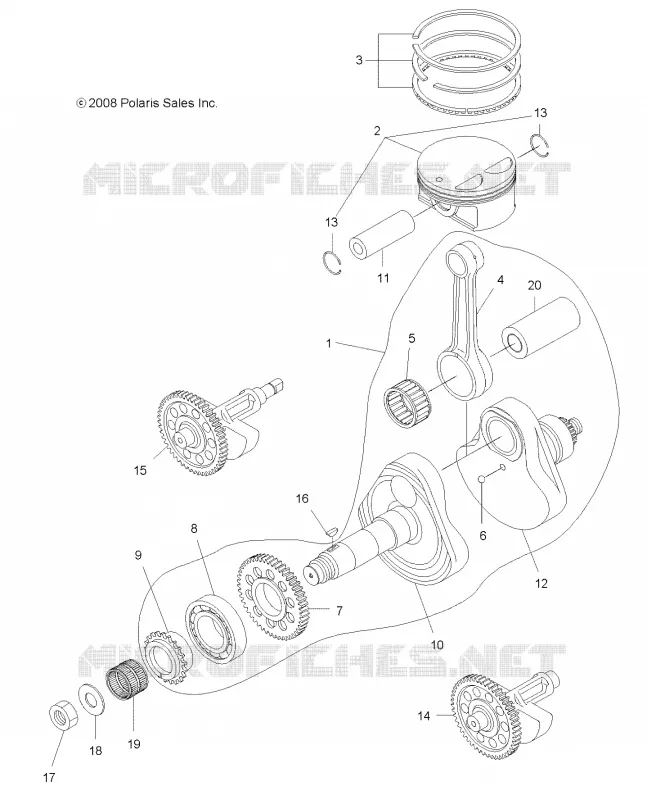

Find the detailed ENGINE, CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
