Engine displacement
550
2
Year
2009
3
Trim
SPORTSMAN XP EPS 550 - A09ZX55AC/AL/AQ/AS/AX
4
Parts Catalog
BRAKE LINES
5
Parts Diagram
Parts Catalog
REAR BODYWORK STORAGE
by
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
BRAKE LINES
1
1
1
1
2
2
2
2
3
3
4
5
6
7
8
8
9
10
11
11
12
12
12
13
13
13
14
1
2
2
3
4
5
6
7
8
9
10
11
1
SEAL
5413212
9999999
Not Available
2
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
3
LINE-BRAKE POD TO J/B
1911393
$152,24 Unit Price incl. VAT
4
CROSS FITTING
7052372
9999999
Not Available
5
LINE-BRAKE REAR
1911062
9999999
Not Available
6
BRKT-JUNCTION BLOCK
5252667
$73,49 Unit Price incl. VAT
7
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
8
BRAKE LINE CALIPER; FRONT
1911383
$141,74 Unit Price incl. VAT
9
SCREW
7512024
$9,44 Unit Price incl. VAT
10
LINE-BRAKE JB TO FT MC
1911384
9999999
Not Available
11
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
12
CLAMP-HOSE .375DIA VINYL COAT
7081472
$7,34 Unit Price incl. VAT
13
SCREW
7512084
$2,09 Unit Price incl. VAT
14
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT

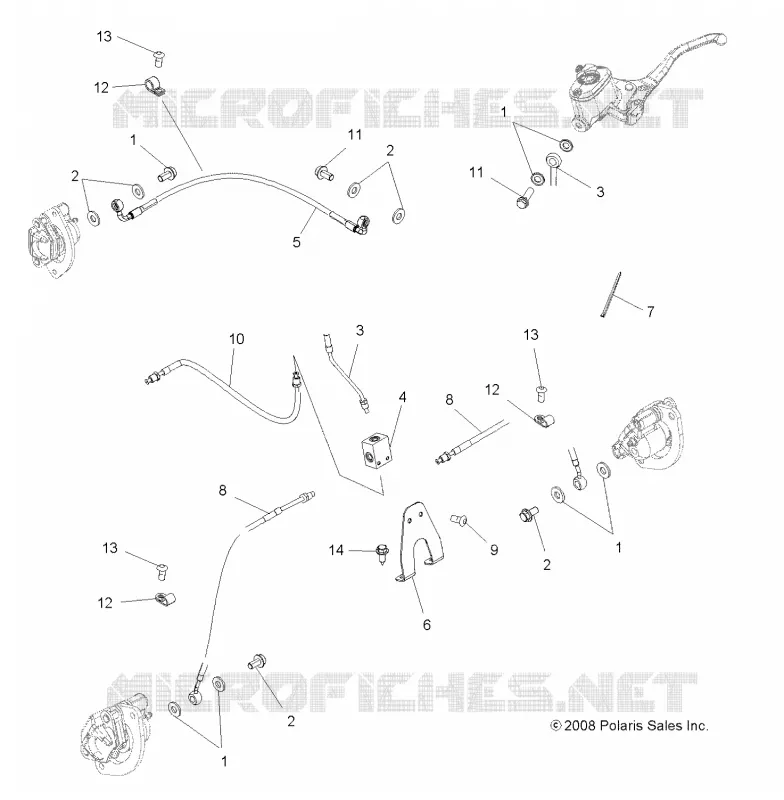

Find the detailed BRAKE LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
