DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 12/02/08 AND AFTER) for POLARIS SPORTSMAN XP EPS 550 - A09ZX55AC/AL/AQ/AS/AX from 2009

STEERING POST ASM.

ENGINE, AIR INTAKE

DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 12/02/08 AND AFTER)

1

ASM-GEARCASE REAR

1332752

2204462

$2 383,49 Unit Price incl. VAT

2

SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM

3234756

$57,74 Unit Price incl. VAT

3

HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM

3234898

$17,84 Unit Price incl. VAT

4

NUT-HEX M16 X 2.0

3234776

$19,94 Unit Price incl. VAT

5

LOCKING WASHER; 17 X 30

3234777

$78,74 Unit Price incl. VAT

6

PIN-DOWEL 6MMX20MM

3234622

3234330

$13,64 Unit Price incl. VAT

7

RING-RETAINING BEVELED INTERNA

3234158

$41,99 Unit Price incl. VAT

8

SHIM; 3.1 X 2.5

3233581

$73,49 Unit Price incl. VAT

9

NEEDLE BEARING; .75 X 1 X .625

3234799

$27,29 Unit Price incl. VAT

10

BALL BEARING

3233714

9999999

Not Available

11

BALL BEARING

3233268

$88,19 Unit Price incl. VAT

12

CASE-MAIN MACHINED

3234791

9999999

Not Available

13

KIT-CASE LH

3234796

9999999

Not Available

14

STRAIGHT BEVEL PINION SHAFT; 10 TOOTH

3234798

$309,74 Unit Price incl. VAT

15

GEAR-37T STRAIGHT BEVEL

3234792

2204462

$2 383,49 Unit Price incl. VAT

16

TUBE-VENT 90-1/4 HOSE

3234230

$19,94 Unit Price incl. VAT

17

COUPLER

3234782

$188,99 Unit Price incl. VAT

18

PLUG; M18 X 1.5

3234755

$52,49 Unit Price incl. VAT

19

TRIPLE LIP SEAL; 40 X 70 X 7

3234793

$57,74 Unit Price incl. VAT

20

TRIPLE LIP SEAL 40 X 70 X 7

3234794

9999999

Not Available

21

O-RING 2-023 NITRIL

3234785

$17,84 Unit Price incl. VAT

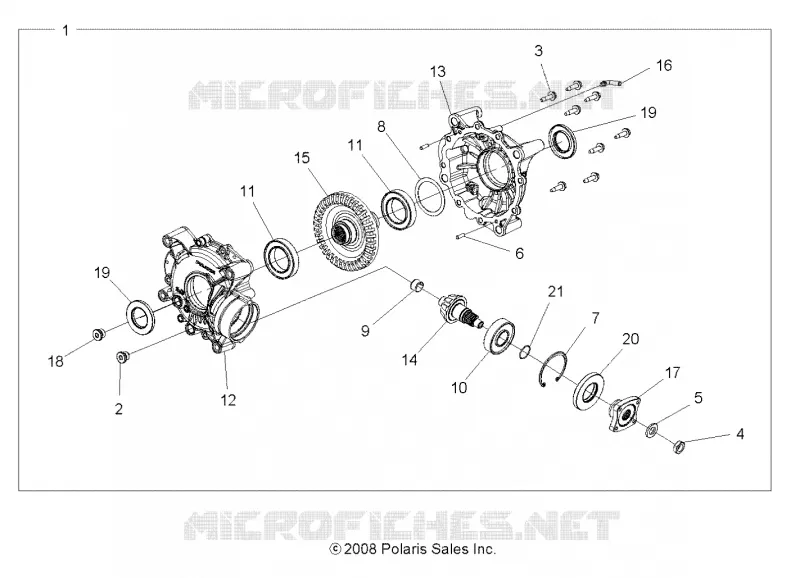

Find the detailed DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 12/02/08 AND AFTER) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
